The damping hinge is an important part to help improve the quality and aesthetics of modern wooden cabinets because it helps the cabinet door to always be opened and closed gently and smoothly.
Damping hinges are accessories that combine pop hinges and dampers to help open and close the cabinet door smoothly, without shock, contributing to improving the durability and aesthetics of wooden cabinets.

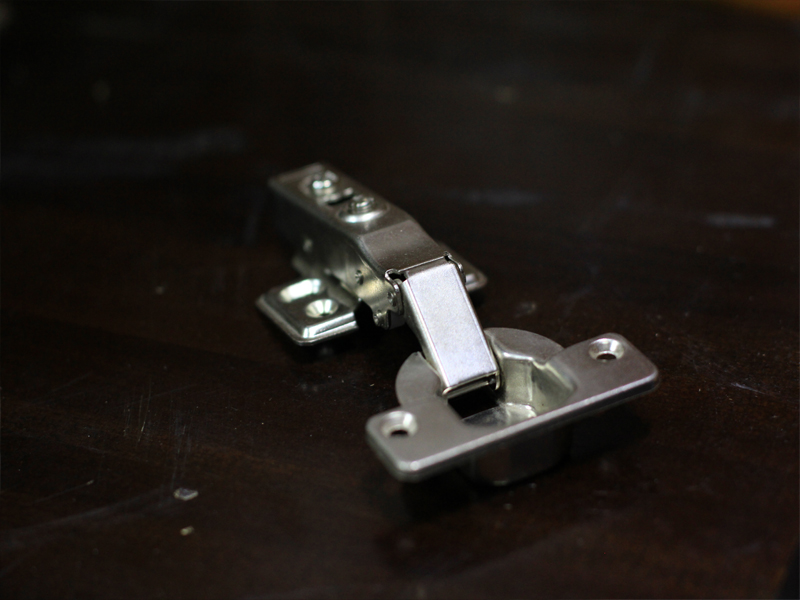

A kind of damping hinge
The damping hinge has a compact design that makes the installation and disassembly of the hinge when you want to clean or grease it simpler and easier. At the same time, it is also fitted with accessories to help adjust the door in place flexibly to suit the needs of each user or comes with LED touch wireless lighting sets for cabinets.
However, not all wooden cabinets use the same damping hinges. Depending on the installation and the needs of the user, the most suitable damping hinge can be selected.
The damping hinge bounces straight
The bounce dampers hinge is also known as the bounce hinge that straightens the outer damper damper. This type of damping hinge combines a bounce hinge and dampers used to subdue the cabinet wall.
- Hinged hand type: bounce straight hinge (outer boss)
- Structure: Includes 2 cups and hinged arms
- Material: Nickel plated anti-rust steel
- The cup bore depth is 9mm with cup 26 and borehole 11.5mm with cup 35mm.
- Installation result: the cabinet wing will cover the entire edge of the cabinet
- The distance from the cabinet wall to the adjusting screw is 15mm.
Medium curved bounce damping hinges
The curved bounce damper hinge is also known as the curved bounce hinge and half dampers. This type of damping hinge combining medium curved bounce hinges and dampers is used for 2 adjacent cabinets sharing a single wall.
- Hinge arm type: medium curved hinge (half covered), the curve of the hinge is 9mm high
- Structure: Includes 2 cups and hinged arms
- Material: Nickel plated anti-rust steel
- The cup bore depth is 9mm with cup 26 and borehole 11.5mm with cup 35mm.
- Installation result: the cabinet wing will cover half the thickness of the cabinet edge
- The distance from the cabinet wall to the adjusting screw is 23mm.
The dampers hinge bounces a lot
The dampers hinge bounces a lot, also known as the hinge that bends a lot of dampers. This type of damping hinge combining a bent hinge and dampers is used for the cabinet close to the wall so that when opening the cabinet door does not collide with the wall.
- Hinge arm type: the hinge bounces a lot, the curve of the hinge is 17mm high
- Structure: Includes 2 cups and hinged arms
- Material: Nickel plated anti-rust steel
- The cup bore depth is 9mm with cup 26 and borehole 11.5mm with cup 35mm.
- Installation result: the cabinet wing does not cover the cabinet wall, but is inside
- The distance from the cabinet wall to the adjusting screw is 30mm.
According to Wood Industry Accessories - Vinahardware
