Steel Bed-Rail Angle Bracket – Model 1600.3.00207
- Status: Out of stock
- Vendor: Vinahardware
Contact
Steel Bed-Rail Angle Bracket – Model 1600.3.00207 | VINAHARDWARE
Product Overview

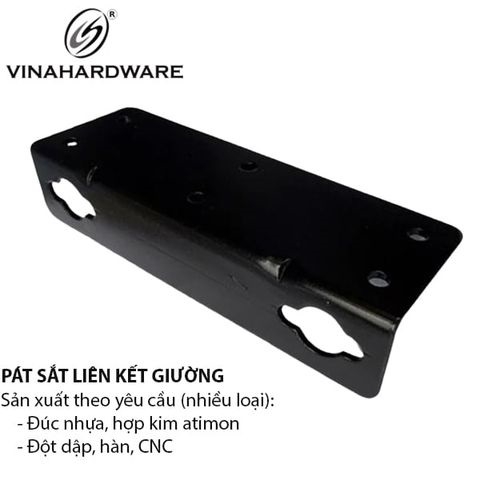

Model 1600.3.00207 is a one-piece steel angle bracket for fastening side-rails to bed posts or headboards. Made from 2 mm cold-rolled steel and finished with black powder coating, it offers a neat appearance, high load capacity, and fast knock-down assembly for export furniture.
| Item | Specification |
|---|---|
| Material | Cold-rolled steel, 2 mm |
| Surface Finish | Black powder coating (custom colors on request) |
| Dimensions | A = 130 mm B = 42 mm C = 27 mm |
| Mounting Holes | 6 × Ø5 mm (wood screw) + 2 key-slot holes |
| Design | 90° bent plate, single component |
| Application | KD bed frames, wooden/metal hybrid frames |
Key Advantages
-
Heavy-gauge 2 mm steel – no wobble, long service life
-
Key-slot cut-outs speed up rail installation/removal
-
Black powder coat resists corrosion, hides scratches
-
Smooth edges & countersunk holes protect timber fibers
-
OEM stamping / laser logo / color available
Installation Steps
-
Position bracket on bed rail; fix with wood screws.
-
Insert bolt head on bed post into key-slot, slide down.
-
Tighten locking screw (optional) for zero movement.
