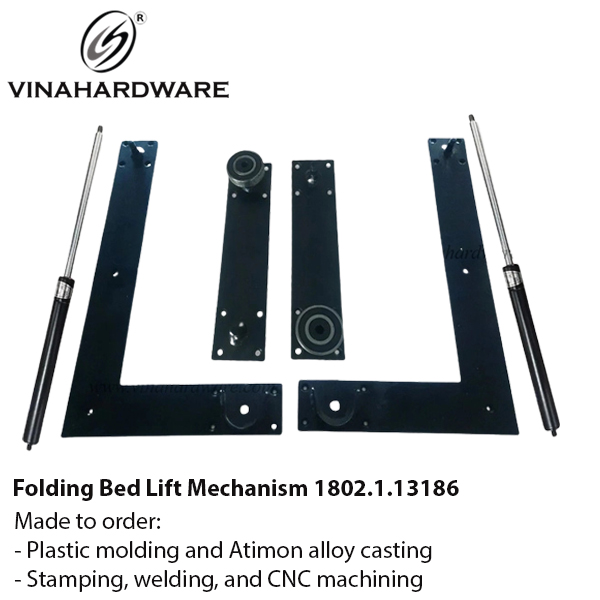

Folding Bed Lift Mechanism 1802.1.13186 | Vinahardware

🔩 Product Overview

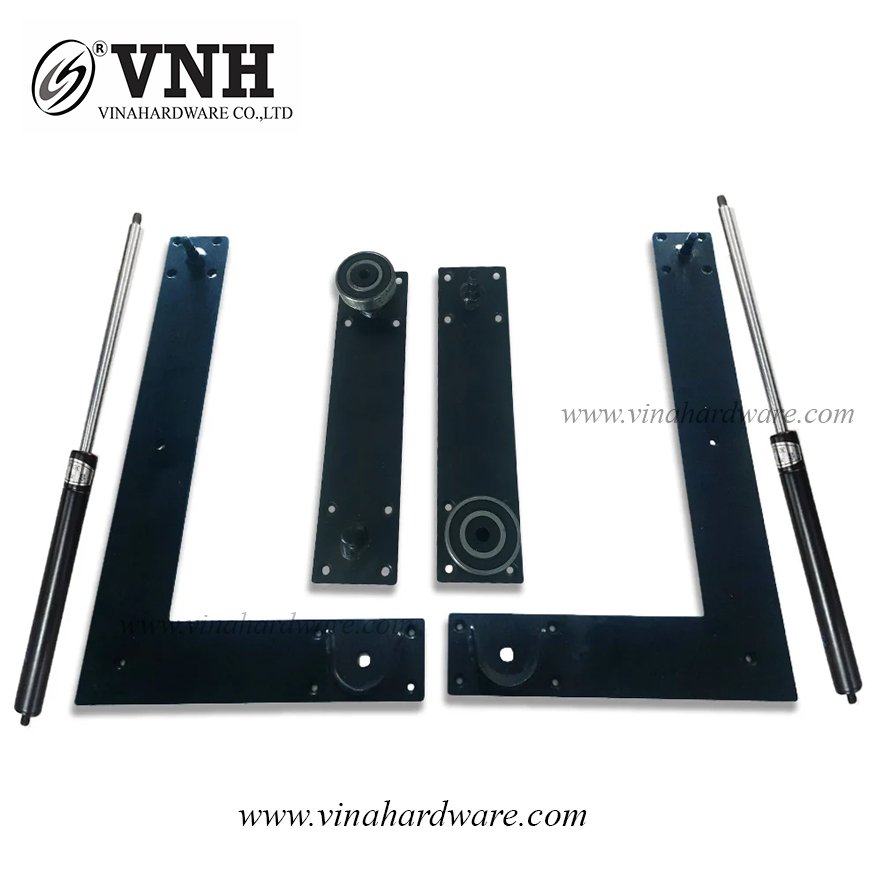

• Product Name: Folding Bed Lift Mechanism

• Model Code: 1802.1.13186

• Brand: Vinahardware

• Origin: Vietnam

• Application: Designed for fold-away or wall-mounted beds in compact living spaces such as apartments, condos, and multi-functional rooms

• Usage: Suitable for wooden bed frames integrated into wardrobes, cabinetry, or smart furniture systems

🛠 Specifications & Components

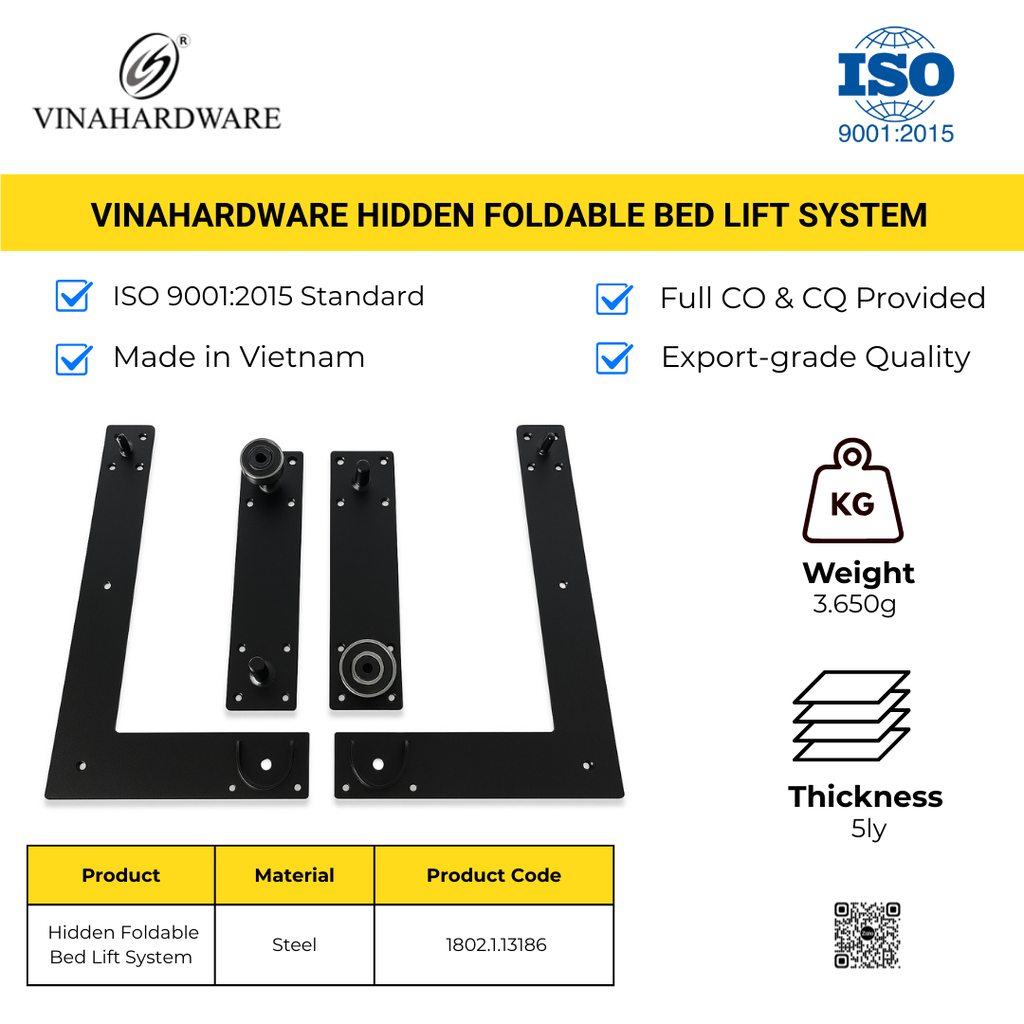

• Structure Material: Flexible steel plates (3mm–5mm thick)

• Finish: Black powder coating (rust-resistant, aesthetic)

• Core Mechanism:

  • Gas lift struts (length 550mm) – high strength and smooth operation

  • Bearings: 2 x BD6203 high-precision bearings

  • Laser-cut steel parts for high accuracy

  • CNC machined and manually assembled for durability and reliability

• Additional Hardware:

  • Hex socket bolts, self-tapping screws, locking nuts, and anchor plates included

  • Fully knock-down kit, ready for assembly

⚙️ Manufacturing Details

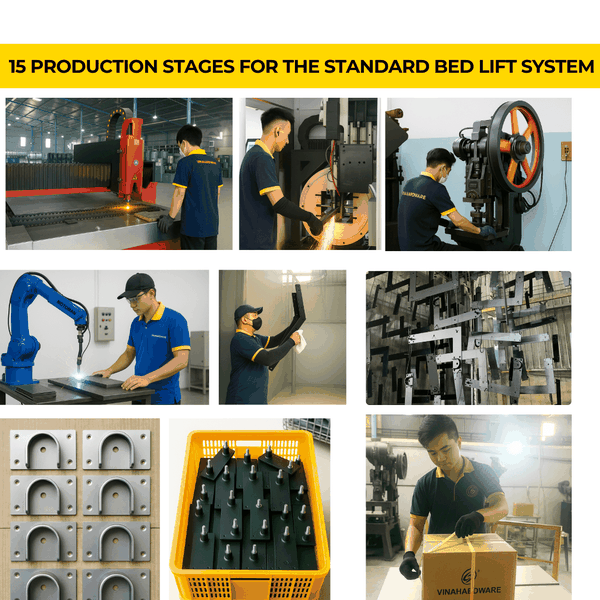

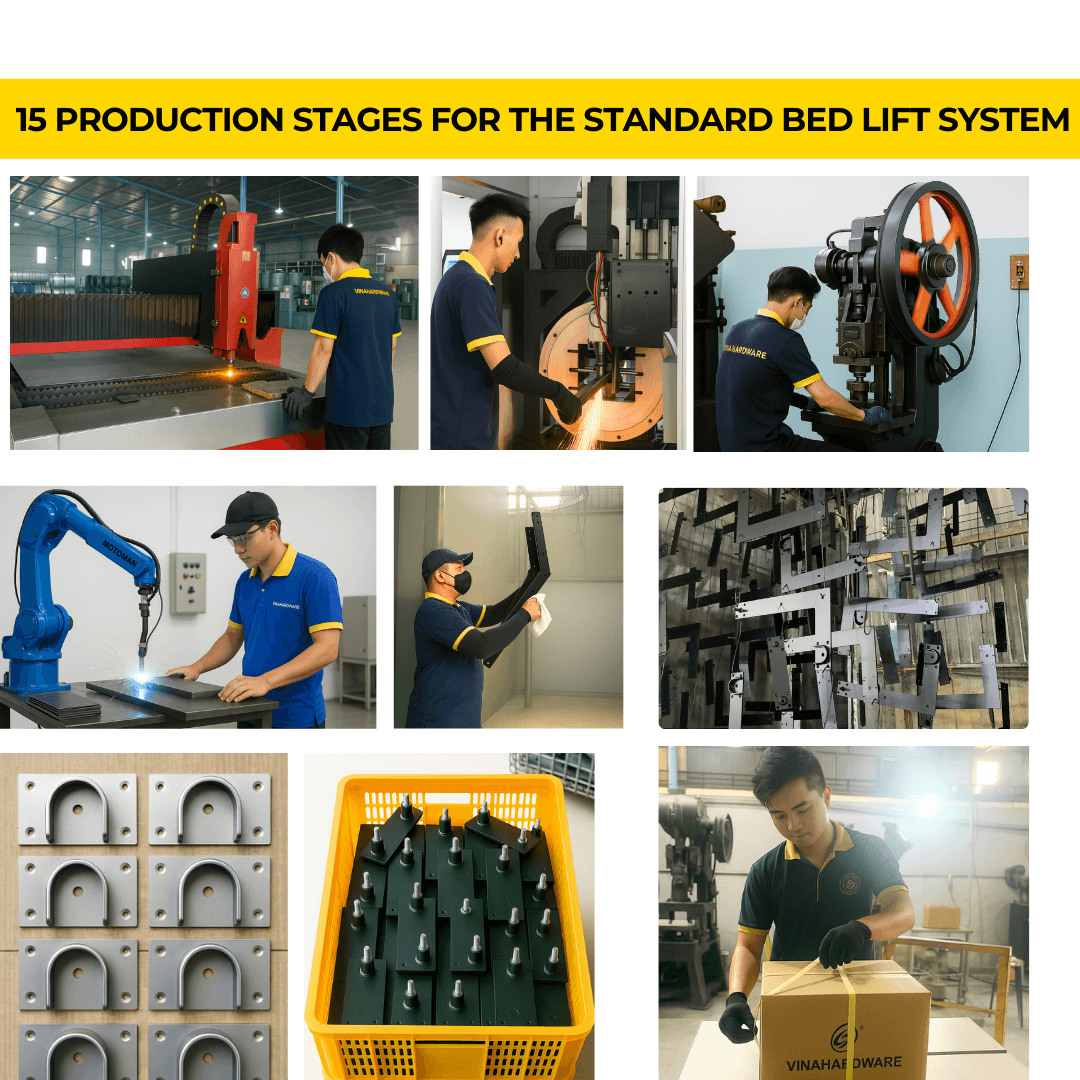

• Manufacturing Technologies:

  • Plastic molding, Atimon alloy casting

  • punching machining, stamping, laser cutting, and robotic welding

• Tolerance: High-precision (meets engineering drawings)

• Production Time:

  • Lead time: 13.1 days for 500 sets (from order confirmation)

  • Preparation time: 4.6 days

  • Total turnaround: ~17.7 days

📦 MOQ & Delivery

• Minimum Order Quantity (MOQ): 500 sets

• Delivery Term: DAP – Delivered at place (as per buyer’s request)

• Packaging: Secure box with anti-scratch lining and foam layering to protect all components during shipping

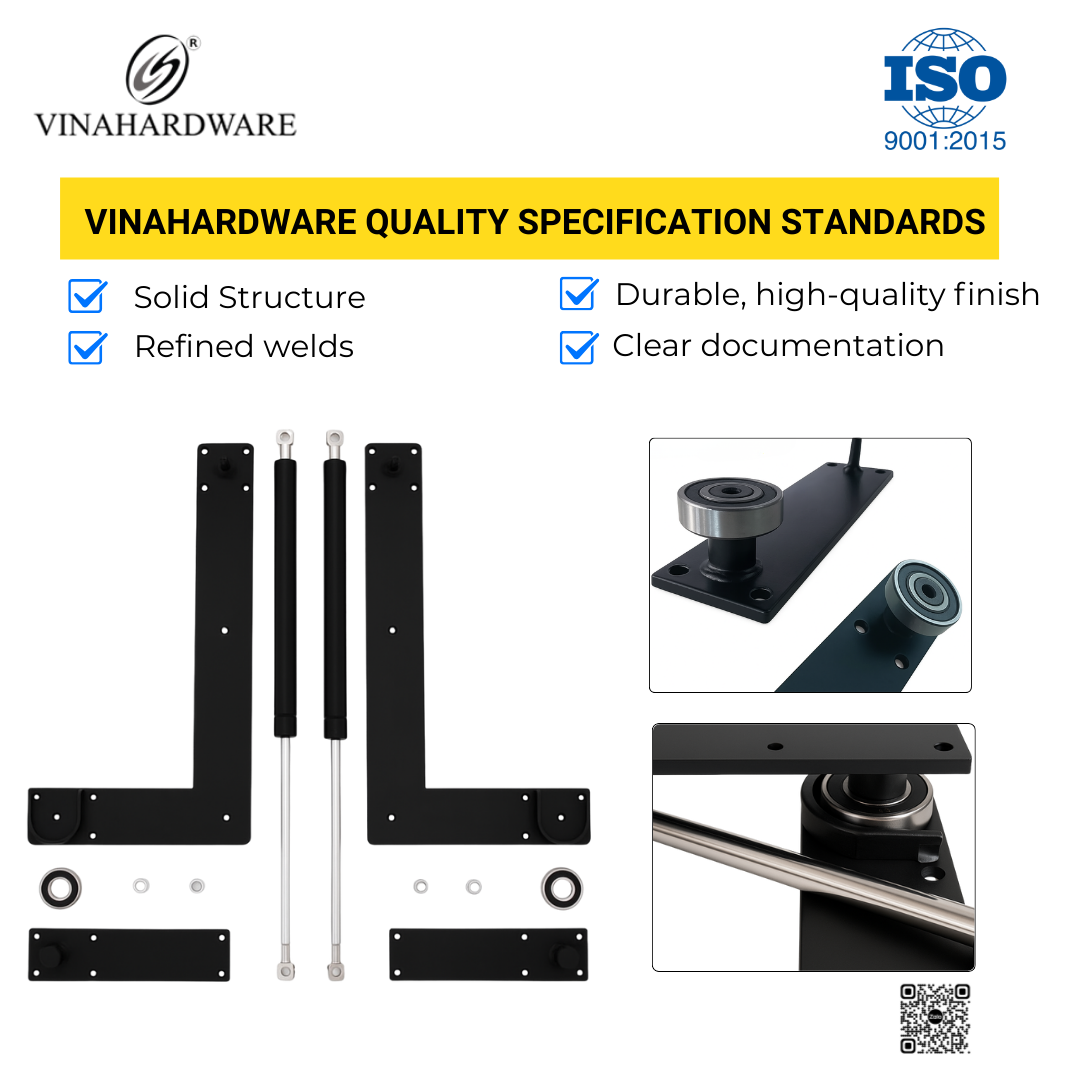

✅ Quality Control

• Full inspection checklist before shipment

• No welding visibility on exposed surfaces

• Weight, surface treatment, dimensions, and mechanical movement are strictly checked

• Powder coating verified for thickness and adherence

• No logo (OEM-ready) – customizable branding upon request

📌 Why Choose Vinahardware?

• Over 10 years of experience in metal furniture accessories manufacturing

• Reliable OEM/ODM service for furniture brands and project developers

• Flexible support in tooling, custom designs, and large-volume production

• Competitive pricing with strict quality control

📞 Contact Supplier
VINAHARDWARE IMPORT & EXPORT MANUFACTURING JSC
🌐 Website: www.vinahardware.com.vn
📧 Email: info@vinahardware.com.vn
📦 OEM/ODM | Bulk Orders | Fast Lead Time | Global Shipping Available

Folding bed arm kit, Hydraulic Cylinders VN001318

Vinahardware Bed Lift Mechanism for Built-In Cabinets

• High Precision Manufacturing:
• Price Range: From 19 USD to 26 USD, depending on the bed lifting force capacity.

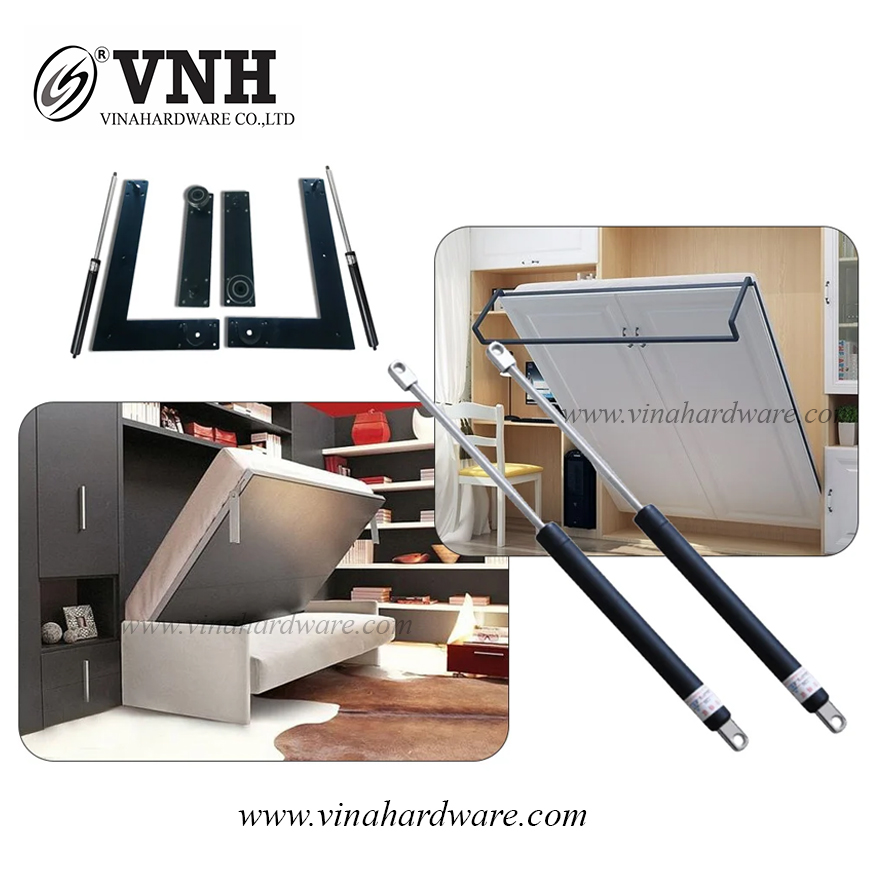

This bed lift mechanism is designed for durability and functionality, ensuring smooth operation for built-in furniture.

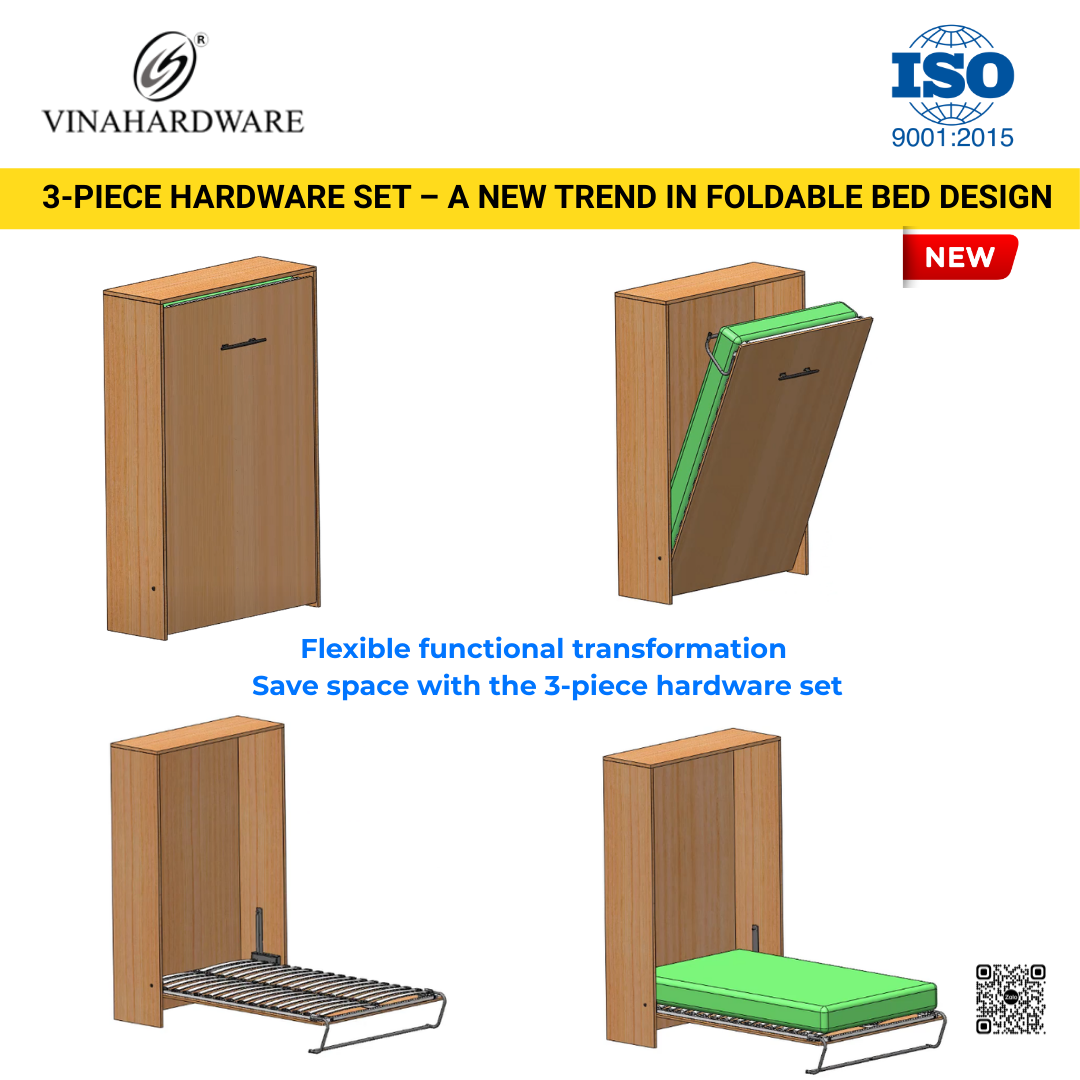

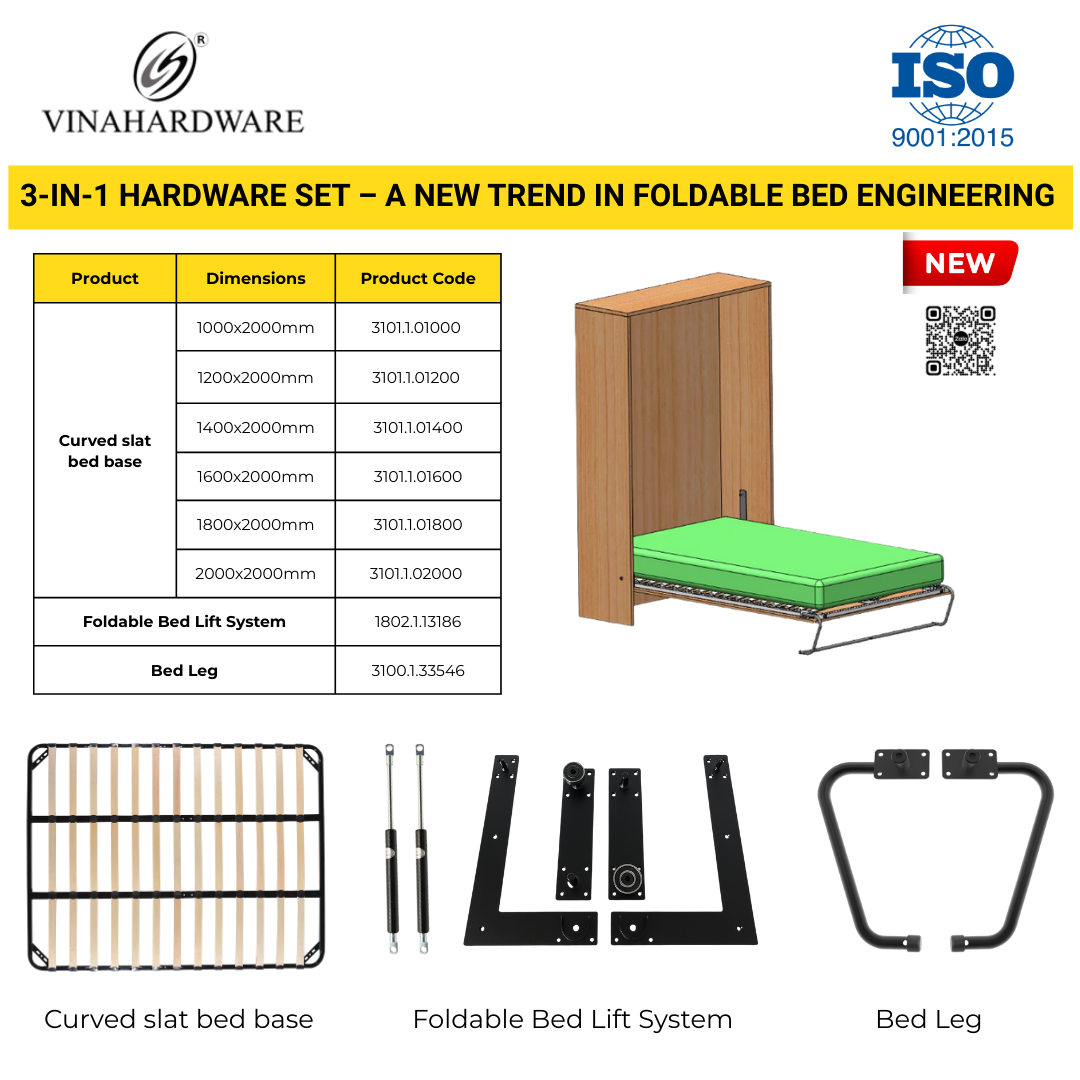

Products used for assembling folding bed systems, smart beds with easy, convenient operation and many advantages:

- Easier to install than spring type.

- Convenient maintenance warranty.

- Good load capacity of 100kg, thrust support to the cabinet (easy to replace push-up steam bench suitable for bed weight).

- Can provide apartments and houses with stowed facilities.

- Convenient and safe for users.

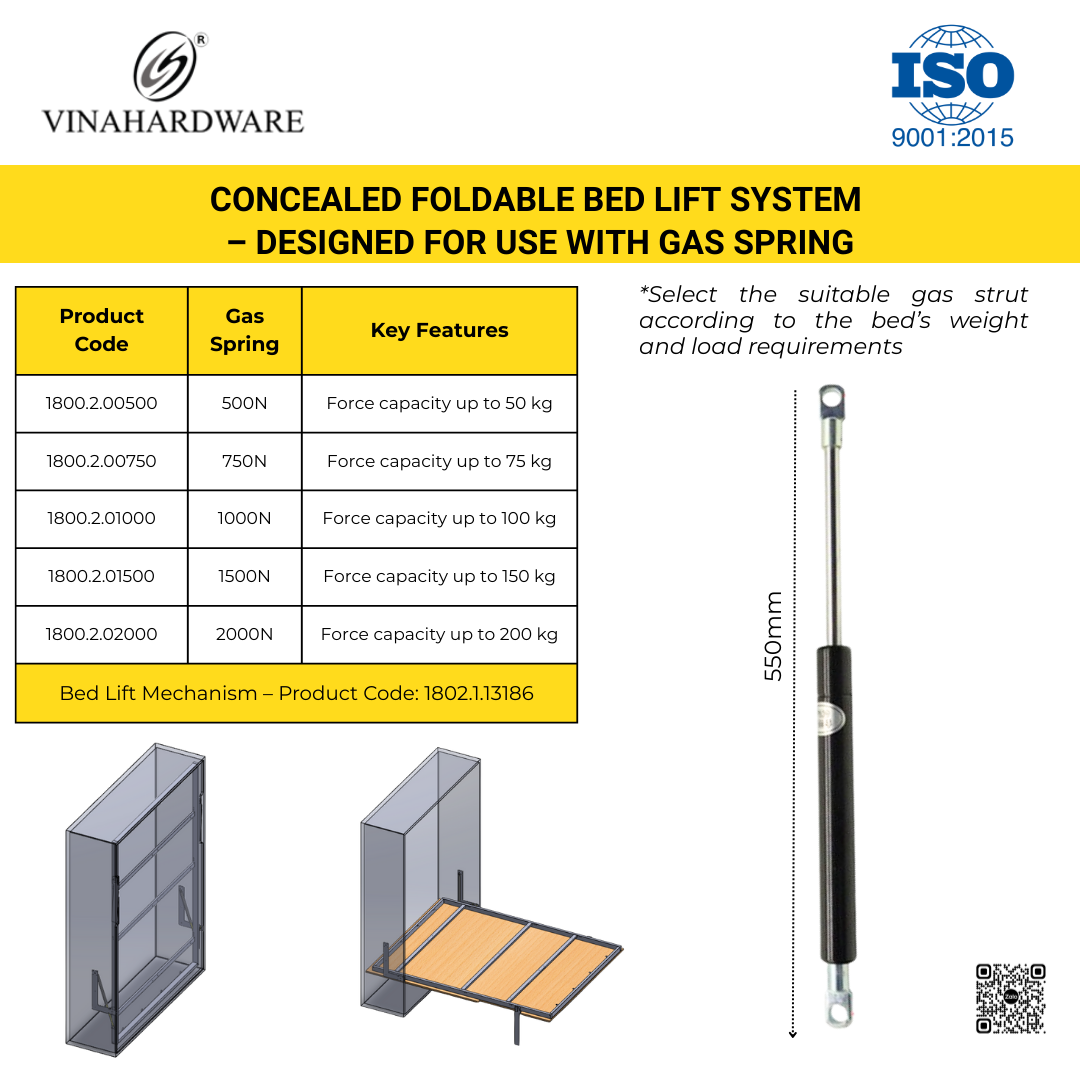

Note: Ben is slightly suitable for thrust equivalent to 100kg. In case the bed frame is heavier, you need to adjust the steam bench accordingly, which can have a thrust capacity equivalent to 150kg (1500N).

Some experience in the design process is that the depth of the cabinet is at least 400mm in order to distribute the thrust load at the head of the bed properly.

You can refer to the demo at Vinahardware workshop on Vinh Phu Street 17A, Thuan An, Binh Duong.

Product information

- Steel material

- Color: electrostatic black

- Size; as the caption on the picture

- Function: lifting and lowering the built-in bed
