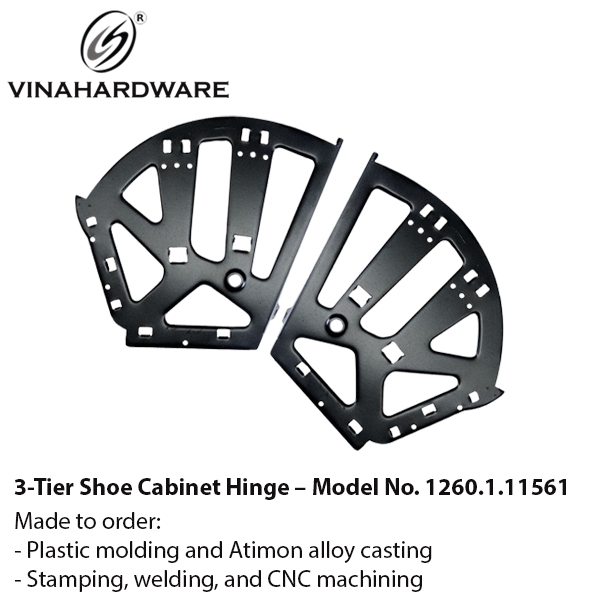

3-Tier Shoe Cabinet Hinge – Model No. 1260.1.11561

Product Name:

3-Tier Shoe Cabinet Hinge – Model No. 1260.1.11561

Product Overview

The 3-tier shoe cabinet hinge by Vinahardware Vietnam is a smart and space-saving mechanism that allows smooth folding and expansion of multiple shoe racks within a single cabinet. It features a strong steel structure, elegant surface treatment, and precision CNC stamping – making it ideal for modern household and commercial shoe storage furniture.

Key Features

• Premium Steel Material:
  Crafted from high-quality galvanized steel for enhanced durability and long-lasting performance – especially under frequent open/close usage inside shoe cabinets.

• Surface Finishing Options:

  • Black powder coating (default)

  • Custom color coating available upon request

  • Electrostatic painting ensures uniform texture and strong adhesion.

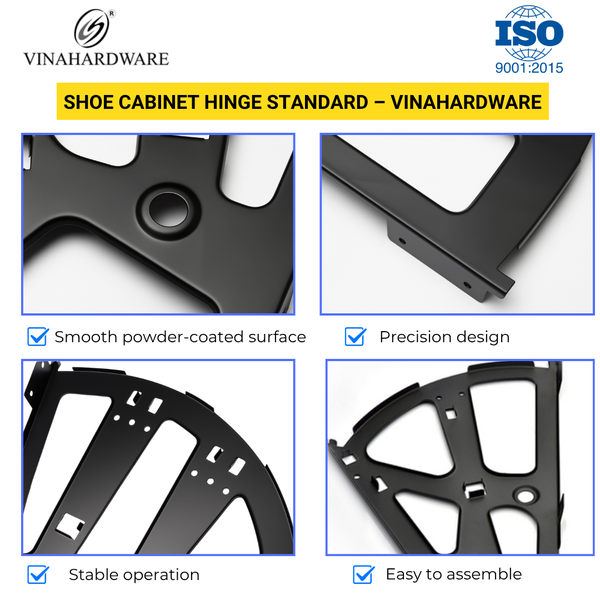

• Precision Fabrication:

  • Punching

  • Surface edge rounding for safety and aesthetics

• High Load Capacity:

  • Each tier supports up to 10–12 kg

  • Total structure capacity: up to 35 kg

• Quick Installation:
  Designed with pre-punched mounting holes – easy to install using standard M4 bolts.

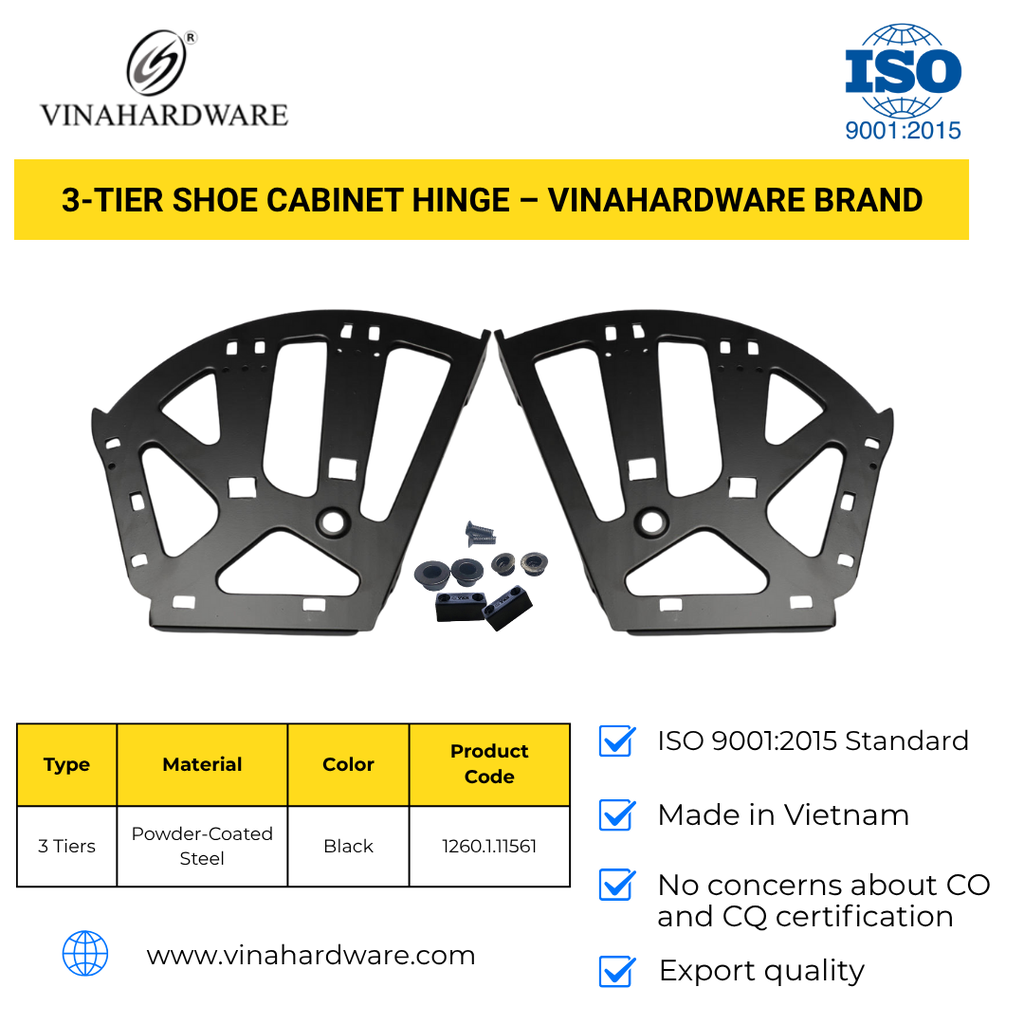

Technical Specifications

Applications

• Family shoe cabinets

• Office shoe storage systems

• Hotel closets and wardrobes

• Foldable multi-tier display units

Why Choose Vinahardware?

✅ 15+ years of manufacturing experience in industrial hardware
✅ Made in Vietnam with strict quality inspection at every step
✅ Custom production: size, coating color, surface finish
✅ OEM & ODM supported
✅ Fast lead times, competitive pricing, and full technical support

-------

TECHNICAL PRODUCTION SPECIFICATION

Product: 3-Tier Shoe Cabinet Hinge
Model: 1260.1.11561
Manufacturer: VINAHARDWARE Production & Export JSC
Origin: Vietnam
Minimum Order Quantity (MOQ): 5,000 - 20,000 sets

I. Technical Specifications

II. Material & Accessory Overview (excluding pricing)

• Galvanized steel sheet: processed via CNC cutting and punching

• Powder coating type: P01.7300 (electrostatic)

• Accessory components include:

  • Large cap: WC3TL (black antimony)

  • Small cap: WC3TN (black antimony)

  • Plastic bumper: VNH261210B

  • M4 cone-head bolts: HSS412B

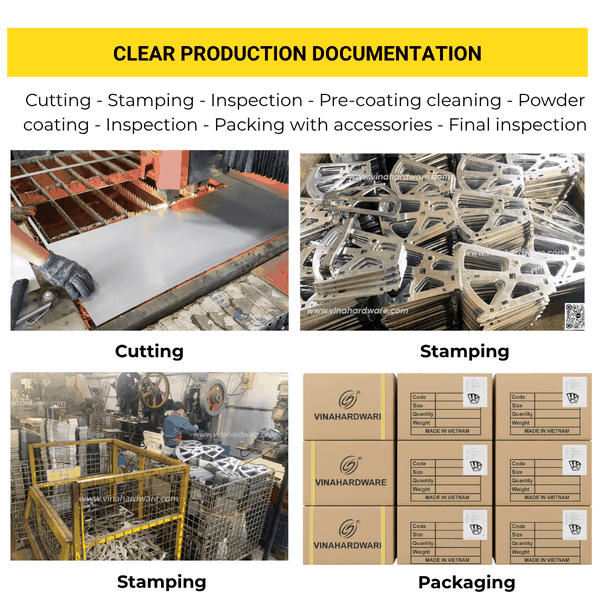

III. Production Workflow

IV. Production Schedule

• Order received: September 10, 2024

• Preparation time:

• Production time: 20 days

• Total production cycle: Approx.25.3 days

• Production volume: 10,000 sets

V. Quality Control & Inspection

VI. Factory Performance Evaluation & Responsibilities

• Reward criteria based on:
  ✅ Early delivery
  ✅ Cleanliness and maintenance
  ✅ Product quality

• Performance reviewed post-production for internal accountability

• Reward distributed:

  • 70% at end of month

  • 30% based on annual attendance and commitment

VII. Notes & Special Remarks

• Product is built using corrosion-resistant galvanized steel – suitable for long-term use in shoe cabinet environments (often humid).

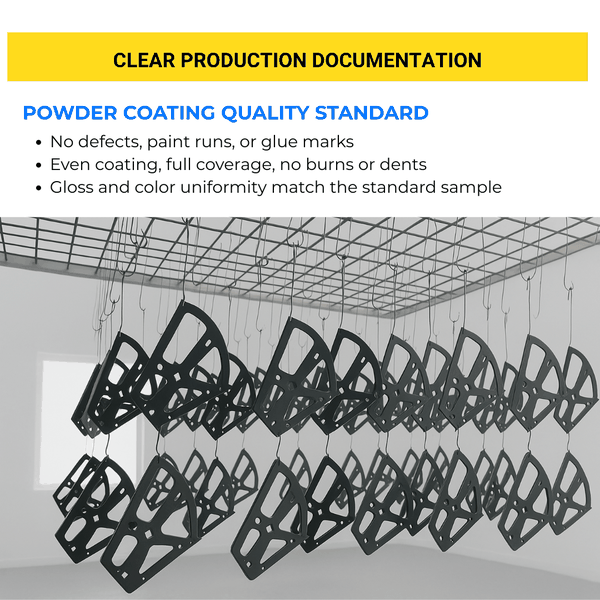

• Electrostatic powder coating is applied for both durability and aesthetics. Colors can be customized based on customer preferences.

• Entire product is designed, manufactured, and quality-controlled at Vinahardware’s factory in Vietnam.

🔧 For drawings, OEM specifications, or further documents, please contact the Vinahardware team.

------

✅ PRODUCT QUALITY CHECKLIST

Product Name: 3-Tier Shoe Cabinet Hinge
Model No.: 1260.1.11561
Date of Inspection: ___ / ___ / 202__
Inspector: ___________________
Batch No.: ___________________

🔍 INSPECTION RESULT SUMMARY

• Total quantity checked: __________

• Number of defective items: __________

• Defect rate: __________ %

• Action Taken:
  ☐ Accept batch
  ☐ Rework required
  ☐ Reject batch

📌 Inspector’s Signature: _______________________

📆 Date: ___ / ___ / 202__
