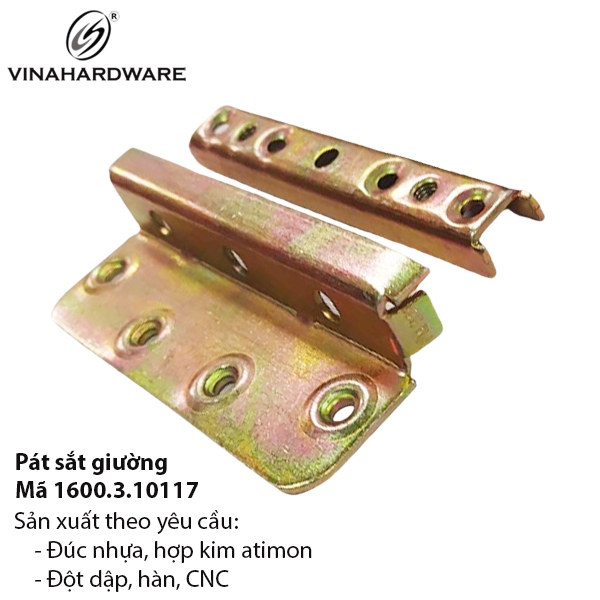

Steel Bed-Frame Connector Bracket – Model 1600.3.10117
- Status: Out of stock
- Vendor: Vinahardware
Contact
Steel Bed-Frame Connector Bracket – Model 1600.3.10117 | VINAHARDWARE
Product Overview
Model 1600.3.10117 is a heavy-duty steel connector for knock-down bed frames. The bracket pair locks side-rails to headboard/footboard posts quickly while providing firm, wobble-free support.
| Item | Specification |
|---|---|
| Material | Cold-rolled steel, 2 mm thick |
| Finish | Rainbow zinc plating (yellow-chromate) |
| Standard Lengths | 120 mm & 180 mm (OEM sizes on MOQ) |
| Mounting Holes | Countersunk Ø5 mm × 6 holes/pair |
| Weight | ≈ 180 g (120 mm set) ; ≈ 260 g (180 mm set) |
| Application | Detachable wooden or metal bed frames |
Key Advantages
-
Quick slide-in locking design for fast assembly
-
2 mm steel withstands heavy dynamic loads – no frame shake
-
Multi-hole pattern distributes stress, protects timber fibers
-
Seven-color zinc plating ➜ anti-rust & attractive finish for export packing
-
OEM/ODM stamping & laser logo available
Installation Guide
-
Align female plate on bed post; secure with wood screws.
-
Fix male plate on side-rail.
-
Slide plates until the latch clicks.
-
Tighten locking screw (optional) for zero tolerance.
