50kg Loading Table Lifting Mechanism – Model 1802.1.04056
- Status: Out of stock
- Vendor: Vinahardware
$15.60
Market price:

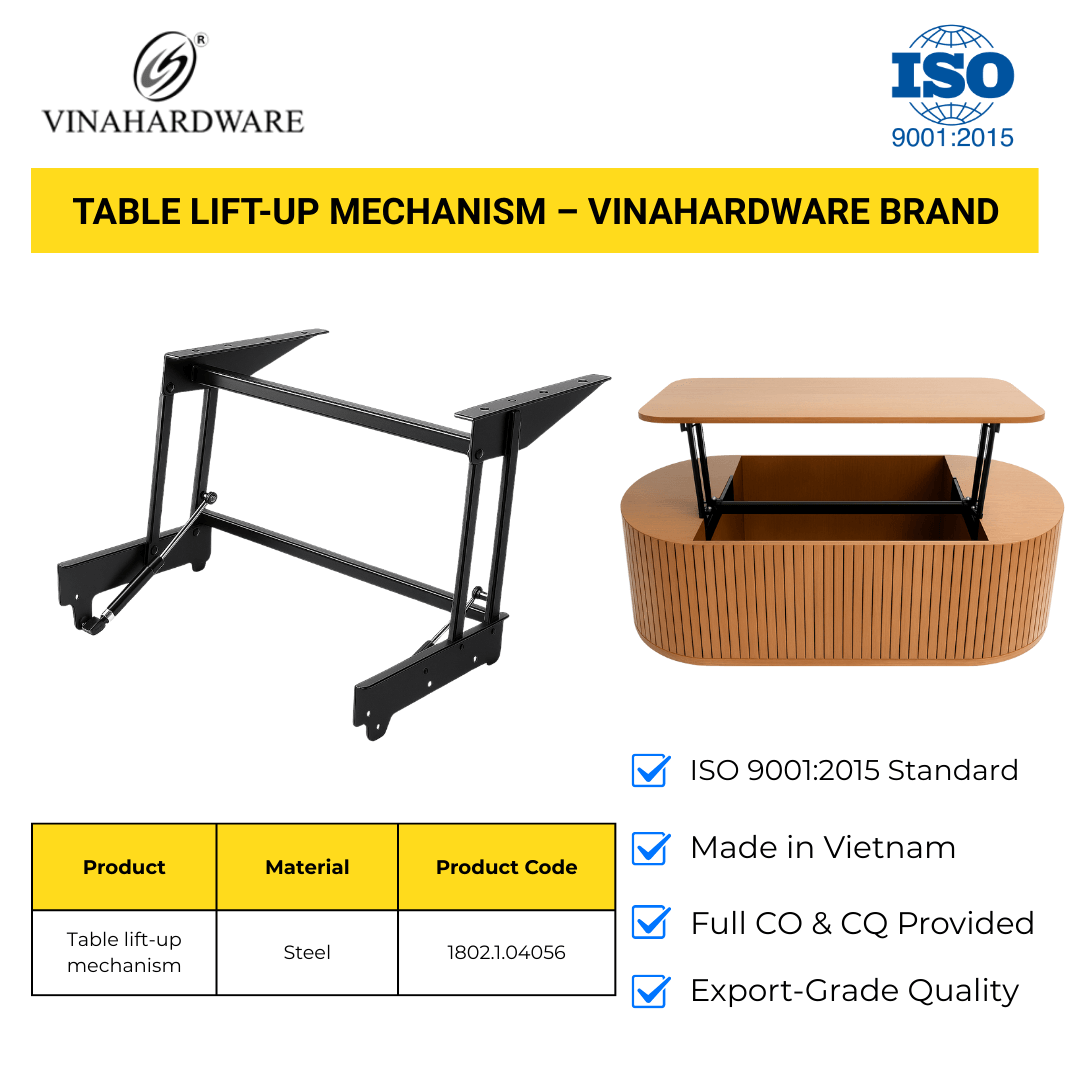

50kg Loading Save Space Table Lifting Mechanism – Model 1802.1.04056
Brand: Vinahardware
Made in: Vietnam
OEM/ODM: Available
🔧 Product Description

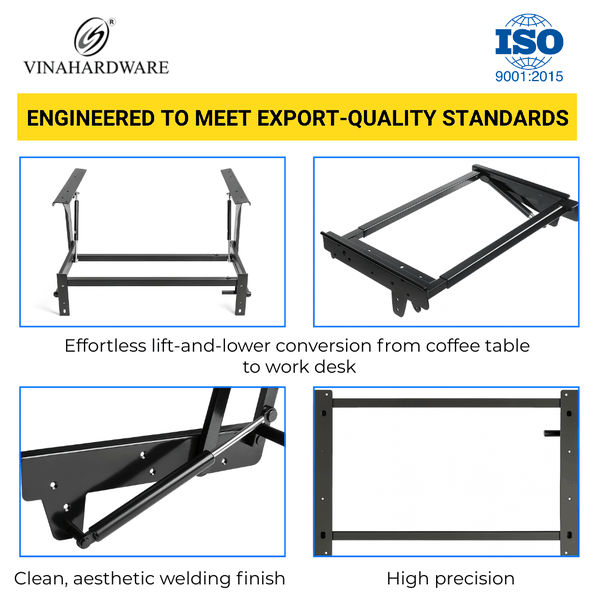

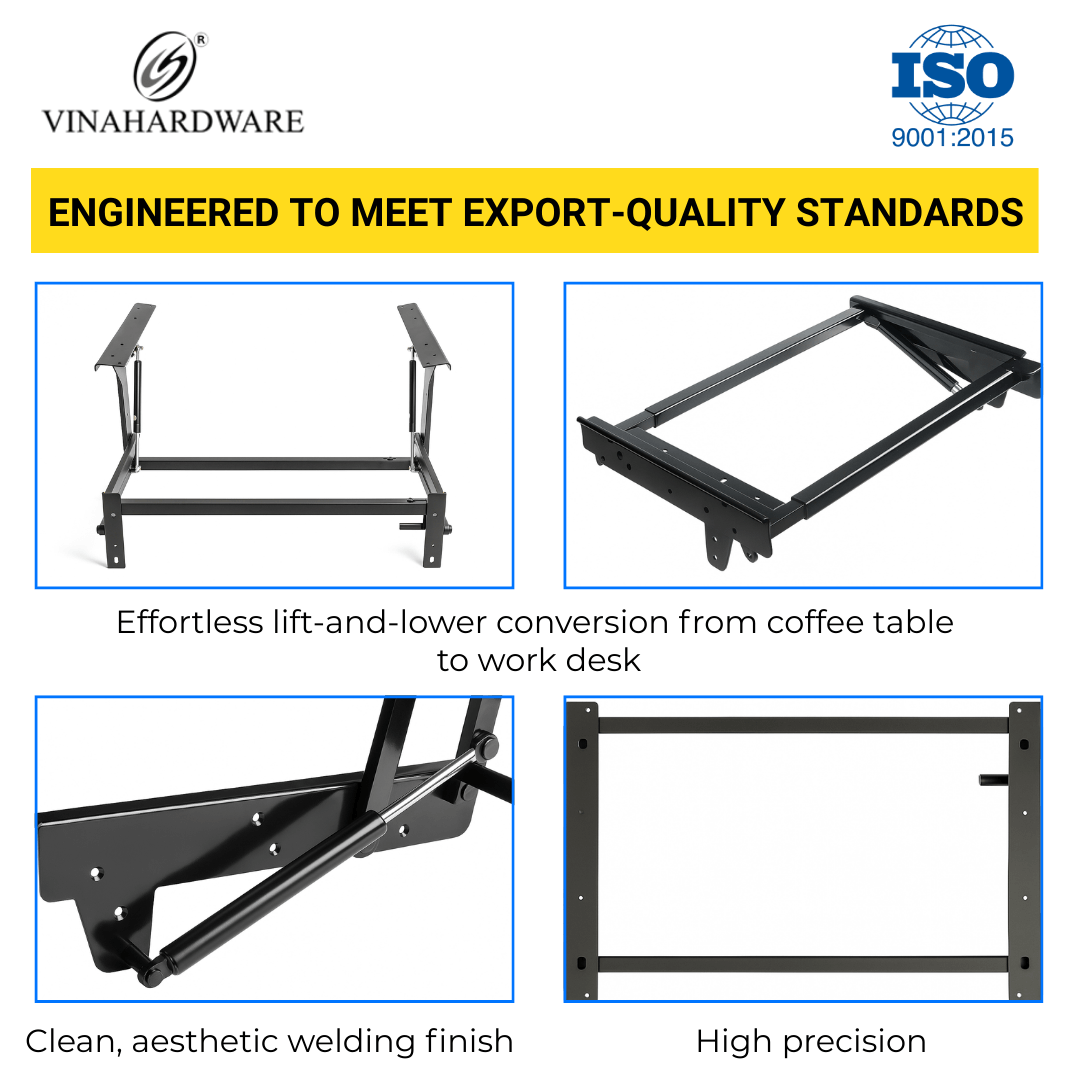

The VNH405B-HDFA684 lift-up table mechanism is a smart furniture hardware solution for modern living. Designed for lift-top coffee tables and integrated sofa tables, this mechanism allows smooth, quiet lifting and closing, helping maximize space while maintaining durability and stability.
✅ Key Features
-
Heavy-duty construction: Tested lifting capacity up to 80 kg with strong steel frame (1–2 mm thick).
-
Secure steel locking system: Auto-locking when lifted, ensuring safe use without sudden drops.
-
Electrophoretic black coating: Durable, anti-rust surface finish with smooth matte texture.
-
Soft-close gas lift support: Equipped with gas struts for smooth, controlled motion.
-
Adjustable tabletop leveling: Easy to adjust during installation to ensure table balance.
-
Wide compatibility: Fits wood, MDF, particle board tops, and various sofa table frames.
📐 Specifications
| Item | Details |
|---|---|
| Model No. | 1802.1.04056 |
| Total Length | 405 mm (adjustable) |
| Load Capacity | Up to 80 kg |
| Surface Finish | Black electrophoretic coating |
| Gas Spring Model | P270N120, 270 mm |
| Material | Steel tube, steel plate |
| Thickness | 1–8 mm (depending on parts) |
| Function | Lift & Lock table hinge mechanism |
| Included Accessories | M6/M8 bolts, springs, gas struts |
📦 Application
-
Sofa lift-top tables
-
Smart coffee tables with hidden storage
-
Foldable or convertible multifunction furniture
-
Wall-mounted or bed-integrated lift-up tables
🏭 Production Advantages
-
Manufactured by Vinahardware Vietnam
-
Punching, precision bending, powder coating
-
100% lifting test before packing
-
MOQ: 100 sets
-
OEM with custom color, logo, or packaging available
📩 Contact Us for Pricing or Samples
Email: sales@vinahardware.vn
TECHNICAL PRODUCTION SPECIFICATION Product: Lift-up Sofa Table Mechanism – VNH405B-HDFA684 Manufacturer: Vinahardware Origin: Vietnam
I. General Information
-
Product Code: VNH405B-HDFA684
-
Dimensions: Length 405mm (adjustable)
-
Load Test Capacity: 80kg
-
Main Materials: Steel tube, steel plate, solid bar steel
-
Surface Finish: Black matte electrophoretic coating
-
Accessories: Gas spring P270N120, spring, M6/M8 bolts, pins, rivets...

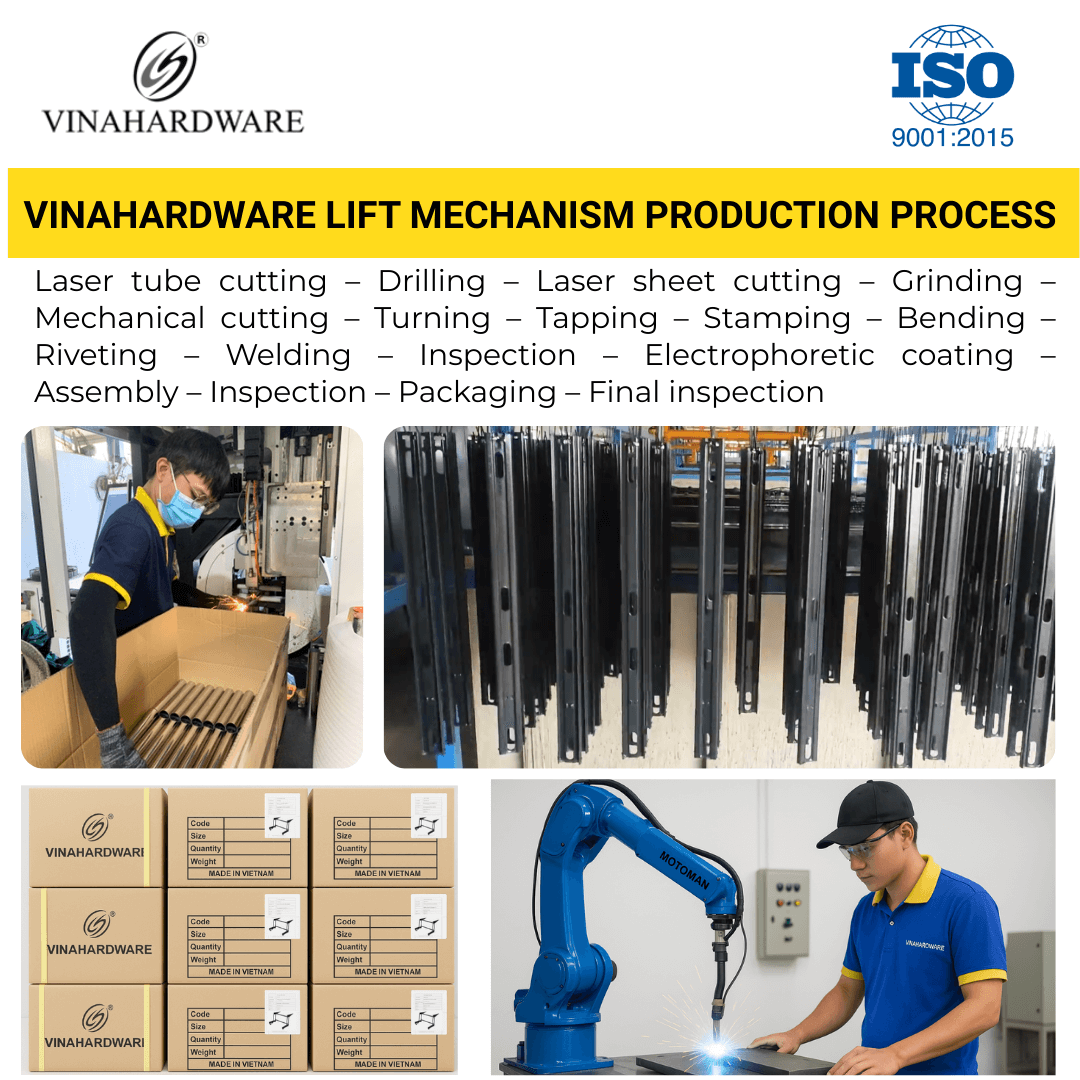

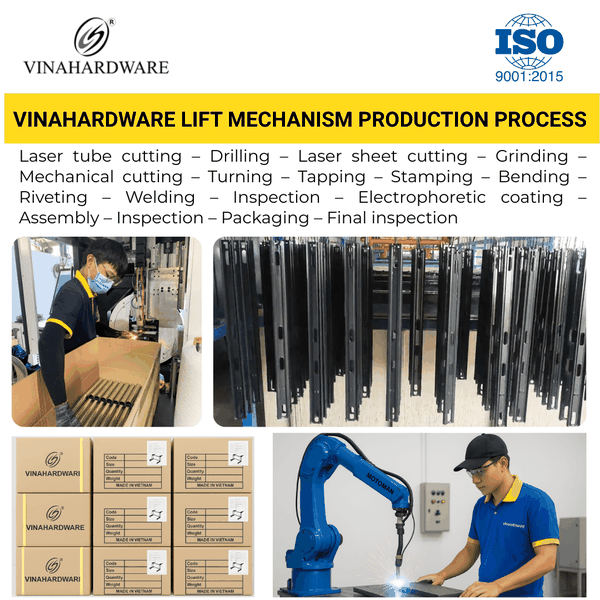

II. Production Process
| Step | Operation | Equipment Used | Quality Control Notes |
|---|---|---|---|
| 1 | Laser cutting (tube/steel) | CNC laser cutting machine | Dimensional accuracy within ±0.2mm |
| 2 | Drilling ø14, ø12, ø8 | Drill press + drill bits | Ensure concentric holes, no misalignment |
| 3 | Deburring / edge milling | Grinder + milling tools | Smooth edges, safe for handling |
| 4 | Turning (shaft, cap) | Manual lathe | Accurate roundness and concentricity |
| 5 | Internal/external threading | Manual + assisted tap tools | Clean threads, no burrs, assembly ready |
| 6 | Stamping & angle bending | Press brake, stamping press | Accurate frame angle as per design |
| 7 | Laser welding / riveting | Handheld laser welder + rivet station | Strong joints, precise alignment |
| 8 | Component inspection | Internal QC + BOM checklist | All parts complete and match BOM list |
| 9 | Final assembly | Skilled worker + jig setup | Smooth operation, correct gas spring tension |
| 10 | Function test (lift/lower) | Load tester + travel gauge | Smooth lifting, no noise or looseness, up to 80kg |
| 11 | Electrophoretic coating + curing | Coating chamber + oven | Uniform finish, no peeling or color fade |
| 12 | Packaging & labeling | PE wrap, carton box, label | Safe packing, scratch-free, QR code included |
III. Quality Control Requirements (QC Checklist Summary)
-
Dimensional tolerance within ± 0.5mm
-
Thread quality suitable for M6 and M8 assembly
-
Lifting test passed at 80kg under workshop conditions
-
Locking mechanism operates smoothly and securely
-
Surface finish uniform, correct color, no peeling or blotches
-
All accessories included and packaged per BOM list
