Model No.: 5411.4.01508 | Brand: VINAHARDWARE
Product Overview

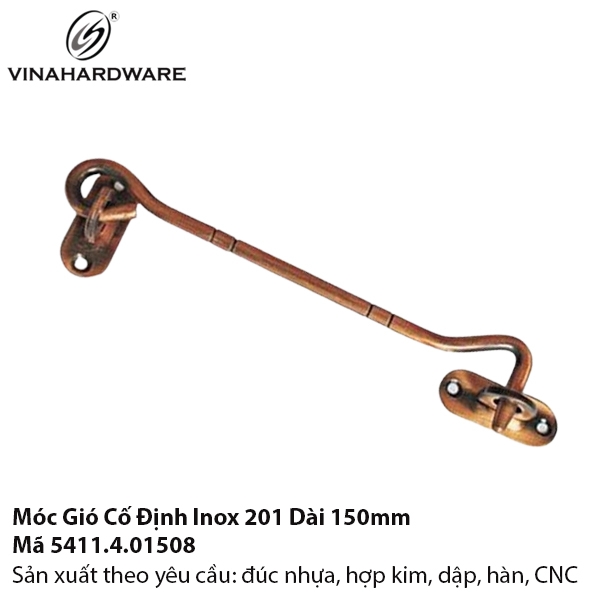

VINAHARDWARE’s 150 mm cabin (wind-proof) hook keeps outward-opening windows, French doors or shutters securely latched in the open position. The hook and eye are cold-formed from Ø 6 mm stainless-steel 201 rod, then antiqued in a warm copper tone and sealed with a clear top-coat. Supplied with matching pan-head screws, it installs in minutes and withstands years of coastal weather without rusting.
Parameter | Specification |
---|---|
Overall length | 150 mm (centre hook‐eye) |
Wire diameter | Ø 6 mm |
Material | Stainless-steel 201 (option: 304) |
Finish | Antique copper (multi-step electro-colour + PU lacquer, 12 µm) |
Eye plates | 40 × 18 mm, 2 × Ø 5 mm CSK holes |
Tensile hold* | ≥ 300 N (*laboratory pull, concrete substrate) |
Corrosion test | ≥ 120 h neutral-salt-spray |
Operating temp. | –20 °C … +80 °C |
Compliance | ISO 9001:2015 • RoHS |
Key Advantages
Stainless core – no red rust even in humid seaside homes.
Safe curved tip – avoids snagging curtains or skin.
Quick swap eyes – straight & 90° keeper plates supplied for flexible mounting.
Silent action – deburred hook glides smoothly; no grating noises.
OEM options – lengths 100–300 mm, colours (black, brushed SS, brass), laser logo in ≤ 15 days.
Typical Applications
Casement windows • patio doors • garden gates • boat hatches • interior shutter panels.
MOQ & Lead-Time
MOQ 1 000 pcs • 12–18 working days after 30 % deposit (7-day rush for repeat orders).
Packaging & Shipping
1 hook + 2 keepers + screw set / kraft bag → 100 sets / inner box → 600 sets / carton 42 × 28 × 18 cm (23 kg). Palletised & stretch-wrapped; FSC cartons or retail blister cards available.
