Anti-Warp Steel Stiffener Bar – Code 2400.1.03006
- Status: Out of stock
- Vendor: Vinahardware
Contact

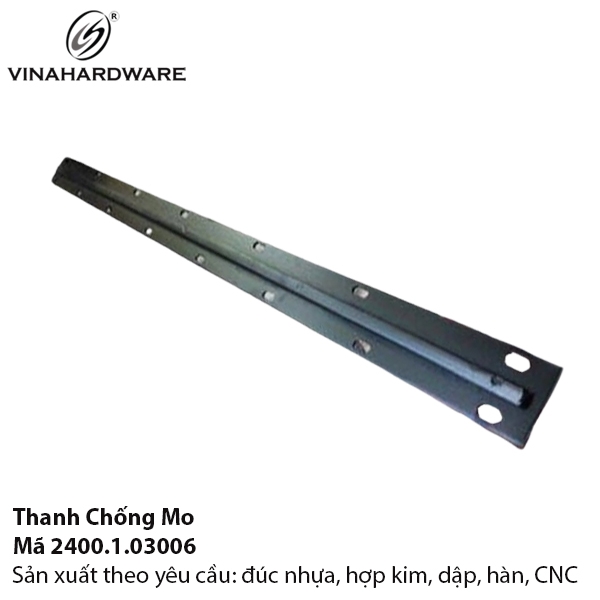

Anti-Warp Steel Stiffener Bar – Code 2400.1.03006 | 3 mm Cold-Rolled Steel
1. Product Overview
Vinahardware’s model 2400.1.03006 is a structural stiffener bar designed to keep solid-wood or engineered-wood tabletops perfectly flat throughout their service life. Installed on the underside of the panel, the 3 mm-thick steel bar counteracts seasonal moisture movement, preventing cup-shaped warping (“bow” and “sag”) in tables, counters and workbenches that exceed 600 mm in width.
2. Key Specifications
| Item | Value | Note |
|---|---|---|
| Standard lengths | 450 / 600 / 900 / 1200 / 1500 mm | Custom up to 2000 mm |
| Material | Cold-rolled steel, 3 mm | SPHC / Q235 |
| Section size | 28 mm W × 12 mm H (U-channel) | |
| Hole pattern | Ø5.2 mm countersunk, 100 mm pitch | |
| Surface finish | Black epoxy-polyester powder coat 60 µm | Salt-spray ≥240 h |
| Tensile strength | ≥240 MPa | Tested to ISO 6892-1 |
| Max tabletop width | 1200 mm with twin bars | Design sheet available |
| Working temp. | –20 °C ~ +80 °C |
3. Manufacturing Process
Decoiling → CNC shearing → Progressive die punching → V-bending & roll-forming → Jig welding of end plates → Blasting + phosphate → Electrostatic powder coating → 100 % flatness & coating-thickness inspection. Lines certified ISO 9001:2015.
4. Competitive Advantages
-
Anti-warp guarantee: Keeps deviation ≤2 mm on 1000 mm-wide oak top after 6-month humidity cycling.
-
3 mm full-hard steel: Resists torsion and impact far better than 1.5 mm market alternatives.
-
Fast installation: Pre-countersunk holes accept M4 wood screws—no routing required.
-
Finish options: Black, white or zinc-nickel for coastal climates; logo laser-etching available from 2 000 pcs.
5. Typical Applications
Dining tables, conference desks, kitchen islands, laboratory benches, retail counters, solid-surface vanity tops, wide cabinet carcass stiffening.
6. MOQ & Lead Time
| Order type | MOQ | Lead Time* |
|---|---|---|
| Standard sizes | 500 pcs | 15 days |
| Custom length / colour | 1 000 pcs | 25–30 days (tooling inc.) |
*From deposit & drawing approval.
7. Packaging & Shipping
10 pcs bundle with VCI paper → shrink-wrapped → 100 pcs / plywood crate (1.3 m × 0.25 m × 0.15 m, ≈42 kg). Heat-treated pallets, bar-code labels, full traceability. Incoterms EXW, FOB Cat Lai, CIF worldwide.
8. Installation Guide
-
Position stiffener 35 mm from back edge, centred length-wise.
-
Pre-drill Ø3 mm × 15 mm pilot holes through tabletop.
-
Use M4 × 16 self-tapping wood screws; torque 2 N·m.
-
