Vinahardware Trapezoidal Student Desk Frame 2300.1.26057
1. Product Overview

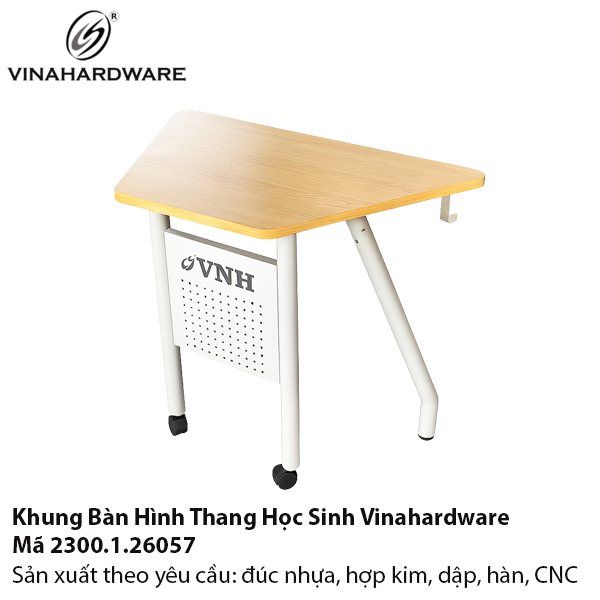

The Vinahardware model 2300.1.26057 is a robust, modular trapezoidal desk frame engineered for modern classrooms. At a standard height of 650 mm, its unique shape allows desks to be nested, linked, or arranged in clusters for flexible learning environments. Constructed from high-strength steel tubing and finished with durable powder coating, this frame offers long-lasting performance under daily classroom use.
2. Key Features

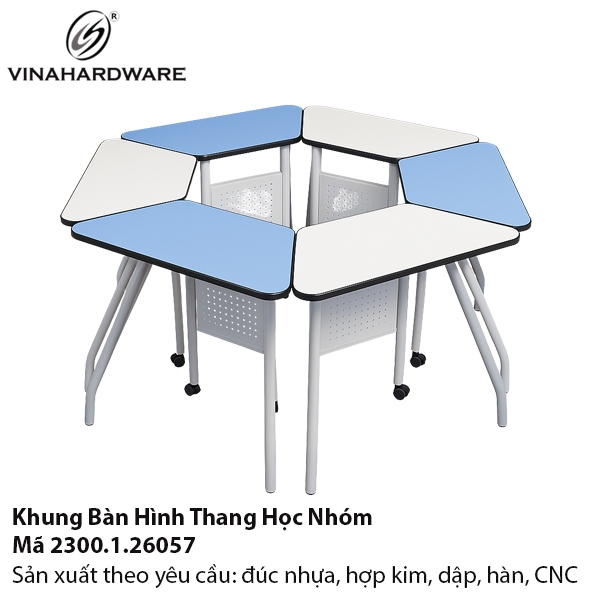

Flexible Configuration: Trapezoidal geometry enables straight rows, staggered groupings, or hive-style clusters—ideal for collaborative learning.
Easy Linking System: Integrated linking brackets on both sides allow secure connection between adjacent desks without loose hardware.
Sturdy Construction: Steel tube frame (Ø 30 mm × 1.2 mm wall) resists bending; reinforced cross-brace enhances lateral stability.
Powder-Coated Finish: Smooth, scratch-resistant coating in light gray (or custom RAL color) protects against wear and corrosion.
Adjustable Levelers: Four nylon-faced leveling feet compensate for uneven floors—ensuring a wobble-free desktop.
Quick Assembly: Bolt-together design with pre-drilled holes and all fasteners included for rapid setup.

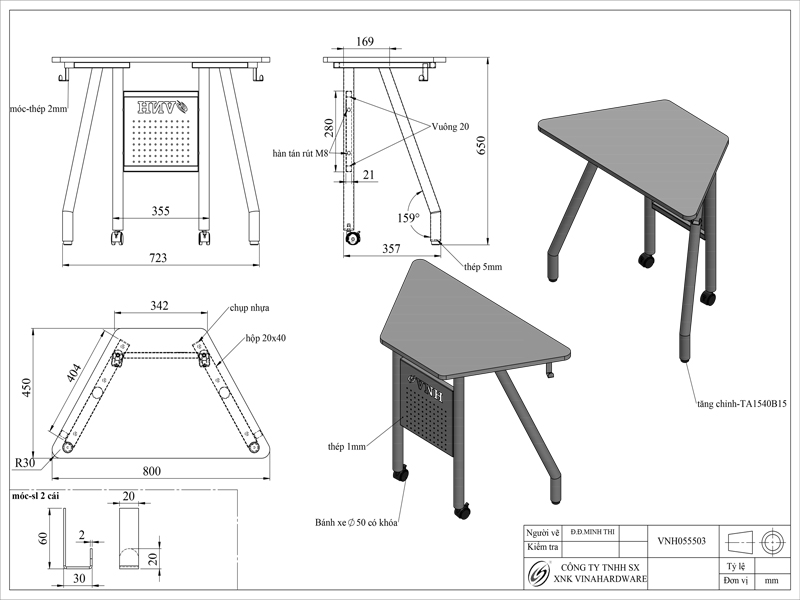

3. Technical Specifications
Parameter | Details |
---|---|
Model | 2300.1.26057 |
Frame Material | Q235 steel tube Ø 30 mm, wall 1.2 mm |
Finish | Powder coating (light gray RAL 7035) |
Height | 650 mm |
Front Width (wide side) | 600 mm |
Rear Width (narrow side) | 400 mm |
Depth | 500 mm |
Linkage Method | Integrated steel bracket with M8 bolt |
Foot Levelers | Adjustable nylon-faced leveling feet |
Net Weight | 6.8 kg |
MOQ | 50 sets |
Lead Time | 15–20 workdays after sample approval |
4. Applications
Primary and secondary school classrooms
Training centers and tutoring facilities
Educational institutions adopting active learning
Libraries and study labs
5. Packaging & Shipping
Individual Packing: Each frame wrapped in kraft paper and corner guards.
Export Carton: 4 frames per reinforced carton (1250 × 450 × 300 mm).
Shipping Options: FCL/LCL by sea, air freight, or express courier.
