Student Desk Frame with Storage Tray — Model 2300.1.69094

Student Desk Frame with Storage Tray — Model 2300.1.69094
Brand: VINAHARDWARE

Product Overview

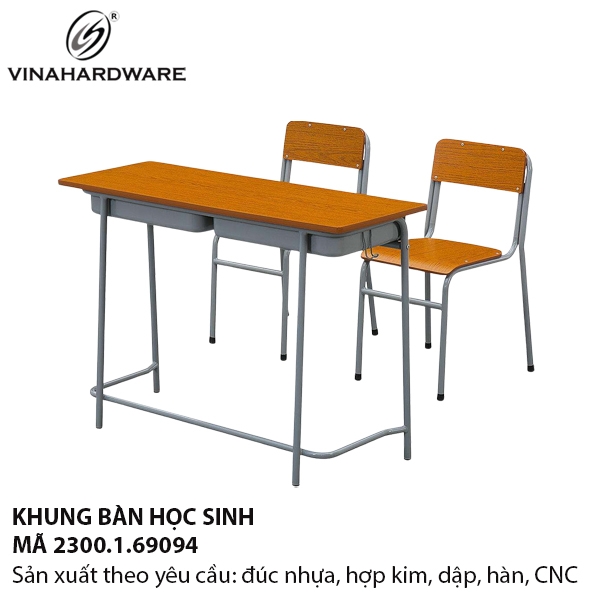

The Student Desk Frame Model 2300.1.69094 is a durable, school-grade desk frame designed for classroom use. Constructed from 22mm diameter steel tubing with 1.0mm wall thickness and combined with an integrated storage tray (desk box) made of 1.0mm steel sheet, this frame offers long-lasting strength, stable support and easy maintenance. The frame accommodates a variety of tabletop materials (MDF melamine, plywood veneer, HPL, or laminated particle board) and is suitable for primary and secondary school environments, training centers and study halls.

Key Specifications

• Model: 2300.1.69094

• Frame Material: Cold-rolled steel tube, Ø 22 mm, wall thickness 1.0 mm

• Desk Box / Storage Tray: Steel sheet 1.0 mm (formed and welded)

• Surface Finish: Shot-blasted + anti-rust primer + powder coating (standard); optional wet paint or zinc plating on request

• Top Compatibility: Supports various tops (MDF melamine, HDF, plywood, HPL) — top not included by default (customizable)

• Leg End Caps: Anti-slip plastic caps to protect floors

• Dimensions (typical / customizable): standard school desk sizes available; custom length/height on request

• Packing: Knock-down (flat pack) with protective foam and carton / wooden pallet for bulk orders

• Application: Classrooms, study rooms, school training centers

Materials & Manufacturing

• Steel tubes are cut, bent and welded by CNC/automated fixtures for repeatable accuracy.

• Desk box is formed from 1.0mm steel sheet, spot-welded or seam-welded, de-burred and finished.

• Surface treatment includes degreasing, phosphating/rust conversion, electrostatic powder coating and oven curing for a durable finish.

• Final assembly uses quality fasteners; all welds are ground and inspected.

Features & Benefits

• Robust structure: Ø22mm tube with 1.0mm wall thickness gives excellent load-bearing and long life.

• Integrated storage: Built-in metal tray keeps books and stationery organized and protected.

• Easy to maintain: Powder-coated finish resists chips and rust, simple wipe-clean surface.

• Safe design: Rounded edges and plastic end caps reduce injury and protect floors.

• Flat-pack friendly: Ships knocked-down to reduce freight cost and simplify logistics.

• Customizable: Finish color, tabletop material and dimensions available to match school standards.

Quality Control & Testing

• Weld inspection and mechanical fastening checks.

• Dimensional checks at jigs to ensure interchangeability.

• Coating thickness and adhesion tests; random load tests for structural safety.

Packing & MOQ

• MOQ: 100 sets (negotiable for different packing/finish).

• Lead time: Typically 25–35 days after deposit and sample/PO confirmation (depends on order size and finish).

• Shipping: By sea (FCL/LCL) or by truck for regional deliveries.

After-sales & Customization

• Custom colors, logo printing, or additional accessories (book divider, cup holder) can be offered.

• Spare parts and replacement guidance available; photos and assembly instructions included.
