Stainless-Steel Continuous Piano Hinge – Model 1240.1.37103
- Status: Out of stock
- Vendor: Vinahardware
Contact

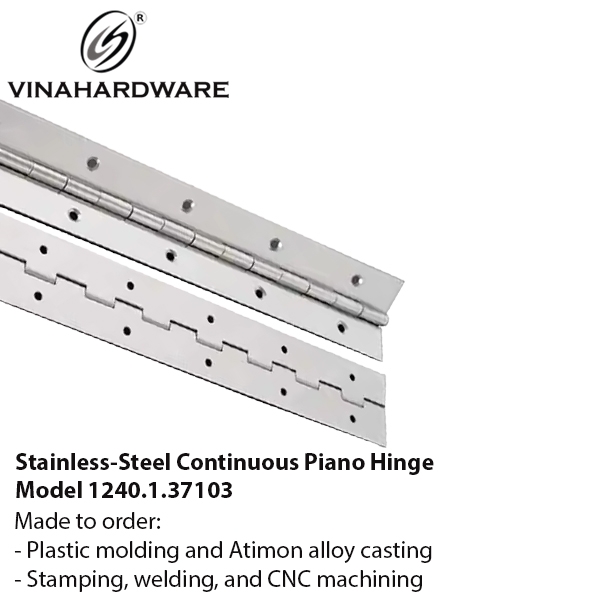

Stainless-Steel Continuous Piano Hinge – Model 1240.1.37103
Vinahardware® | Grade 304 | 37 mm × 1 000 mm | Thickness 1.0 mm
| Item | Specification |
|---|---|
| Material | SUS 304 stainless steel (1.0 mm sheet, brushed finish) |
| Overall size | Width 37 mm (2 leaves) × Length 1 000 mm (custom lengths on MOQ) |
| Knuckle Ø / Pitch | Ø5 mm knuckle, 30 mm knuckle pitch |
| Pin | Ø3 mm solid stainless pin, staked ends |
| Drilling pattern | Countersunk Ø5 mm holes at 100 mm centres (custom on request) |
| Max. door thickness | ≤ 28 mm (cabinet door / lid) |
| Load rating | 30 kg per metre (evenly distributed) |
| Finish options | Satin brush (default) • Mirror polish • PVD black • Electropolish |
| Certification | ISO 9001:2015, RoHS compliant |
Key Advantages
-
Full-length support – distributes load evenly, eliminates sagging.
-
Marine-grade 304 – excellent corrosion resistance in humid or coastal environments.
-
Smooth, no-play rotation – precision-rolled knuckles & ground pin.
-
Customisable – drilling pattern, length, surface finish & laser-etched logo.
-
Vinahardware quality – 100 % piece-by-piece inspection before packing.
Typical Applications
-
Kitchen & wardrobe cabinet doors
-
Piano lids, flight cases, equipment covers
-
Toolbox lids, electrical panels, RV or marine furniture
MOQ / Lead Time
| Item | Detail |
|---|---|
| MOQ | 2 000 pcs (shorter trial orders negotiable) |
| Lead time | 15 – 20 working days after deposit & drawing confirmation |
Packaging & Shipping
-
Inner: 10 pcs/heat-shrink sleeve with anti-scratch film
-
Outer: 100 pcs/carton, strapped & palletised
-
Shipping ports: Ho Chi Minh (Cat Lai) | Hai Phong | CFR / FOB / EXW available
Payment Terms
T/T 30 % deposit — balance before shipment • LC at sight (orders ≥ 20 000 pcs)
