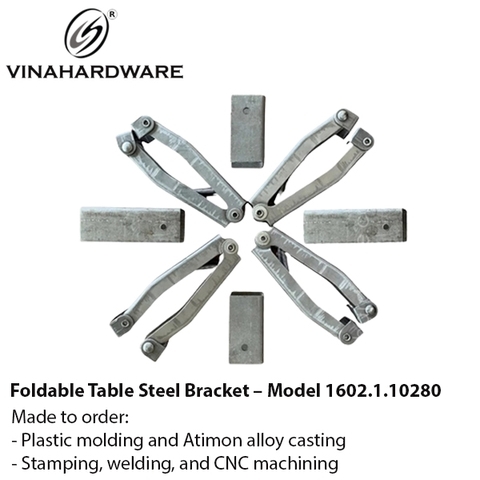

Foldable Table Steel Bracket – Model 1602.1.10280

  • Status: Out of stock
  • Vendor: Updating
$1.93 Market price: Saving:
MOQ

Foldable Table Steel Bracket – Model VINA028457 | Vinahardware

🔩 Product Overview

  • Product Name: Foldable Steel Bracket for Collapsible Tables

  • Model Code: VINA028457 (1602.1.10280)

  • Material: High-tensile cold-rolled steel

  • Finish: Raw surface (uncoated) or customizable powder coating upon request

  • Color: Original steel (silver-gray); custom finishes available

  • Dimensions: Compatible with U-long, U-short, or foldable base types

  • Application: Used for foldable tables, wall-mounted tables, collapsible beds, or multipurpose furniture systems

  • Brand: Vinahardware

  • Origin: Vietnam


🛠 Technical Specifications

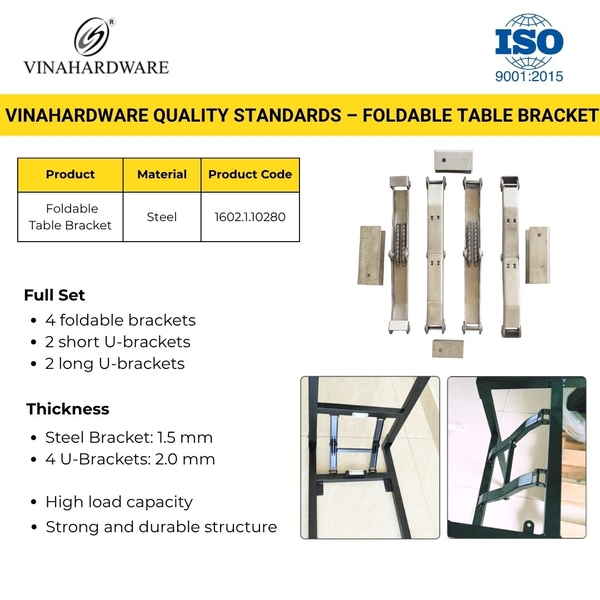

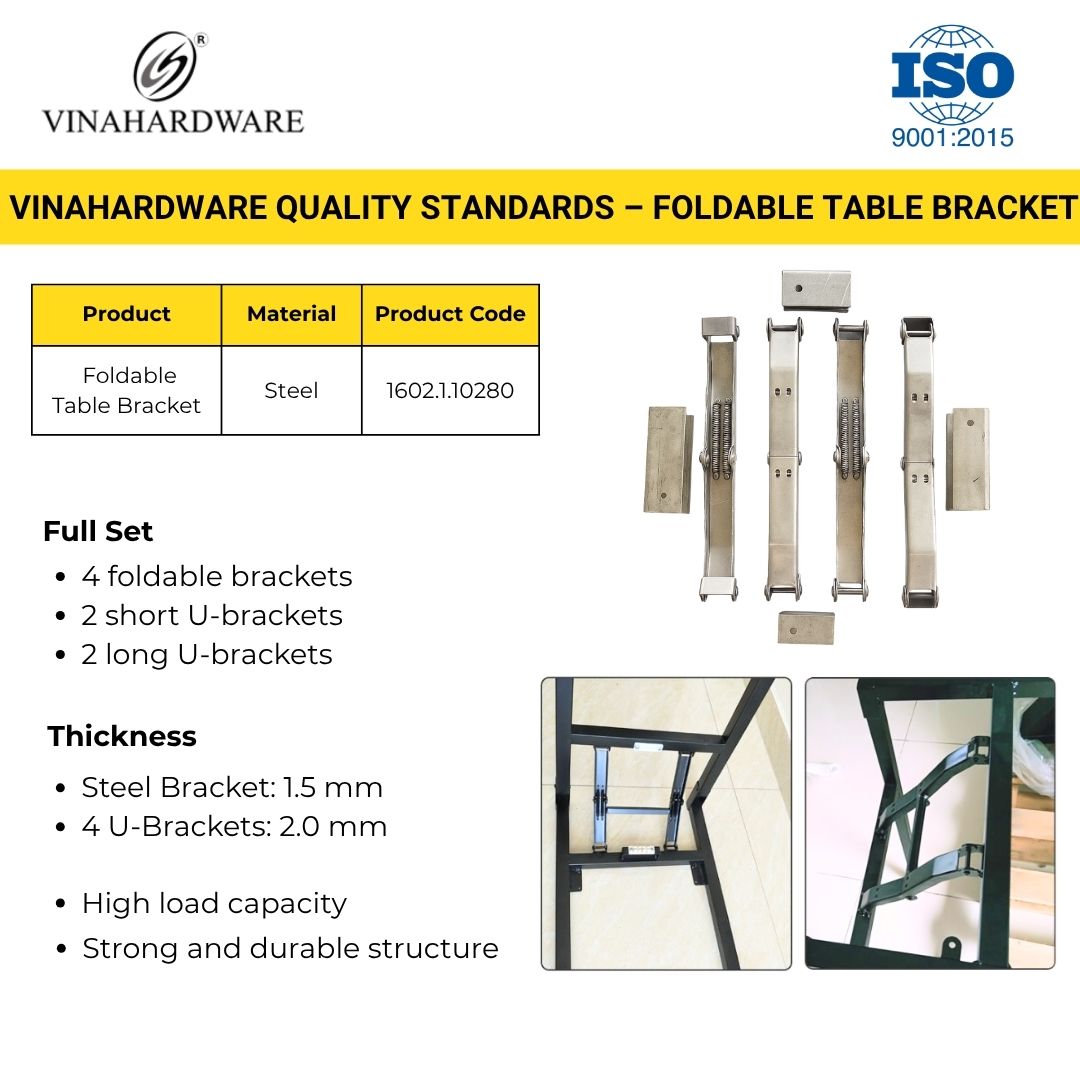

  • Material thickness: 1.5mm and 2mm flexible steel sheet

  • Reinforcement rod: Round bar Φ5mm

  • Joint system: Riveted using 5x32mm rivets and flat washers for smooth movement

  • Spring system: Equipped with internal extension springs for auto-hold and controlled folding

  • No welding: All joints and movements are cold-assembled for cleaner appearance and precision alignment


📦 Production & Delivery

  • MOQ: 5,000 pieces

  • Lead time: Approx. 107 days for bulk production

  • Packaging: Bulk packaging or customized per client's requirement

  • Inspection: 100% QC check for weight, tolerance, and assembly integrity


Advantages

  • Strong, precise, and durable – ideal for heavy-duty applications

  • Foldable design saves space and enhances furniture functionality

  • OEM/ODM customization accepted for size, finish, and structure

  • Long-lasting spring mechanism and consistent performance under load


📞 Contact Vinahardware
VINAHARDWARE IMPORT & EXPORT MANUFACTURING JSC
🌐 www.vinahardware.com.vn
📧 info@vinahardware.com.vn
📦 Professional Manufacturer | OEM Supported | High-Volume Production | Export Ready





MACHINERY AND MECHANICAL PROCESSING TECHNOLOGY VINAHARDWARE (VNH)



Automatic welding robot

RELATED

VINAHARDWARE DIRECTLY PROCESSES TABLES AND CHAIRS, IRON PATS, SLIDERS, HINGES, SMART ACCESSORIES,... PARTICIPATE IN SOCIAL HOUSING PROJECTS, PREFAB HOUSES. PRODUCTS DISTRIBUTED NOT ONLY TO DOMESTIC CUSTOMERS, BUT ALSO WELL RECEIVED BY THE WORLD SUCH AS AUSTRALIA, NEW ZELAND, USA,...

See more catalouge Tables and chairs Vinahardware manufactures:

 https://file.hstatic.net/1000193091/file/ng_hop_-_catalouge_ban_ghe_van_phong__truong_hoc__outdoor_vinahardware_8c52f98df20449d7bbbef28f62812bc0.pdf

AUSTRALIAN CUSTOMERS VISIT VINAHARDWARE



VINAHARDWARE AT VIETBUILD INTERNATIONAL EXHIBITION AND VIFA EXPO INTERNATIONAL EXHIBITION

Products are well received by domestic and international customers for their quality and meticulousness in every product detail.

WHY SHOULD YOU CHOOSE VINAHARDWARE AS A COOPERATIVE UNIT?

FREQUENTLY ASKED QUESTIONS

1. DOES VINAHARDWARE PROCESS ON DEMAND?

Vinahardware (VNH) accepts processing on request, OEM, according to customer requirements. Established in 2012, with more than 10 years operating in the field of mechanical processing with many products from simple to complex. Vinahardware (VNH) is very confident in bringing quality products that meet customers' expectations

2. DOES VINHARDWARE (VNH) NEED DOCUMENTS FROM CUSTOMERS TO BE ABLE TO PROCESS?

- Just 1 of the following 3 data, Vinahardware will have information to quote and advise customers. The quotation will be more convenient if the customer has more specific and detailed requirements.

+ Product drawings

+ Product images

+ Live sample

Vinahardware (VNH) would like to have the opportunity to cooperate with you!
