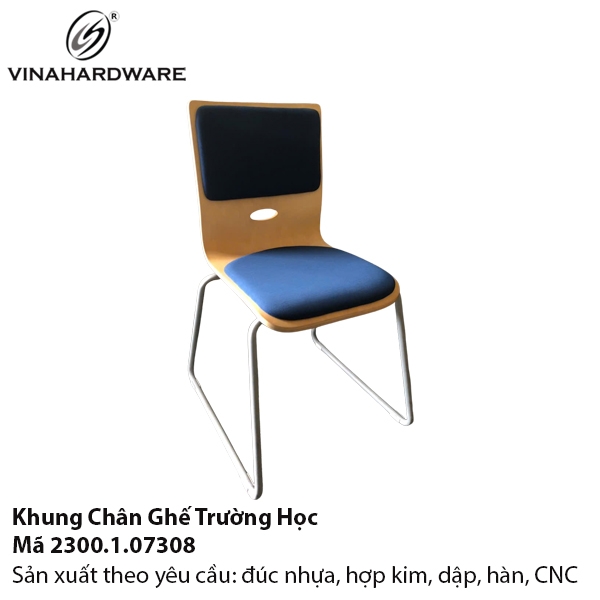

Sled-Base School Chair Frame – Code 2300.1.07308
Key Facts | Details |
---|---|
Configuration | One-piece sled frame to suit plywood, PP or upholstered shells |
Tube Specification | Ø 16 mm × 1.5 mm wall, Q235 low-carbon steel |
Seat Height (Std.) | 450 mm (sizes 380 / 420 / 500 mm on request) |
Overall Size | 490 W × 515 D × 775 H mm (shell-dependent) |
Surface Finish | Epoxy-polyester powder coat, 70 µm, 200 °C cure Colour: RAL chart or custom school palette |
Load Rating | ≥ 150 kg static |
Glides | Black PP anti-scratch caps (felt version optional) |
Stackability | 6 chairs / stack without scratching |
MOQ | 300 frames / colour |
Lead Time | 20 – 25 days after 30 % deposit |
Packaging | 5 frames / PE bag → carton → 300 sets / 40 ft HQ |
Vinahardware’s sled-base frame brings Scandinavian simplicity to the classroom: bent from Ø 16 mm steel, TIG-welded in a one-shot jig, then powder-coated for a gloss that shrugs off backpack scuffs. Match it with plywood, polypropylene or upholstered shells—four screws and the chair is ready for the semester.
CNC mandrel bending – ±0.5° accuracy on every curve.
Six-axis robotic TIG welding – full-penetration seams, tested to 150 kg.
Phosphate pre-treatment + 200 °C bake – 500-hour salt-spray rating.
100 % jig check – squareness and seat-mount hole pitch within ±0.3 mm.
Sled legs glide over classroom floors—no wobble, no scratched tiles.
Integrated hand-hole fits backpack hooks and eases desk-top stacking.
Powder coat keeps its gloss > 3 years indoors; UV-stabilised outdoor option.
OEM colour, size and logo laser engraving delivered within 7 days.
Primary & secondary classrooms • Training centres • Libraries • Multi-purpose halls • Exam seating.
