Mini Square Butt Hinge 30 × 30 mm, Matte-Black Antique - Code 1230.3.11061
- Status: Out of stock
- Vendor: Vinahardware
Contact

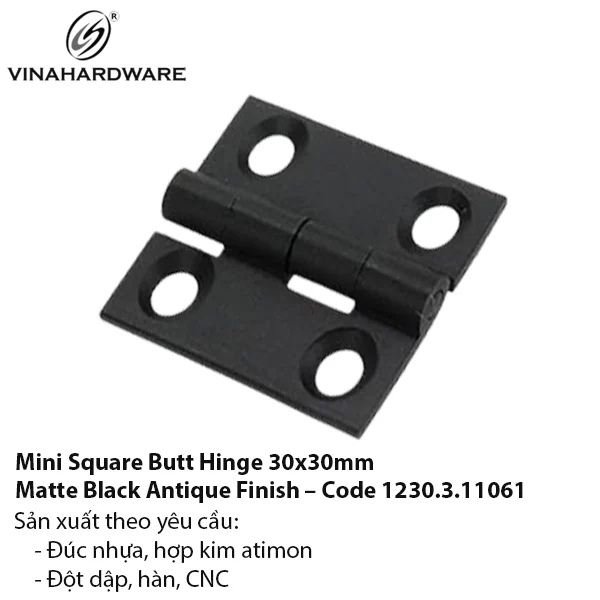

Mini Square Butt Hinge 30 × 30 mm, Matte-Black Antique
Code No.: 1230.3.11061 | Brand: VINAHARDWARE
Product Overview
The 30 × 30 mm Mini Square Butt Hinge from Vinahardware is designed for compact cabinet doors, jewellery boxes, display cases and other light-duty joinery where both strength and aesthetics matter. Formed from precision-stamped cold-rolled steel and finished with a durable matte-black antique powder-coat, the hinge delivers smooth, silent rotation through 270° while blending seamlessly with dark or rustic décor.
| Parameter | Specification |
|---|---|
| Open size | 30 mm (L) × 30 mm (W) |
| Leaf thickness | 1.2 mm (custom 0.8–1.5 mm) |
| Knuckle Ø | 5 mm (3-joint, 2-leaf) |
| Pin type | Fixed steel pin, Ø 2.5 mm |
| Material | SPCC cold-rolled steel (options: SUS304, brass, zamak) |
| Finish | Matte-black antique epoxy powder-coat, 60 ± 5 μm |
| Corrosion resistance | ≥ 96 h neutral-salt-spray (ISO 9227) |
| Screw holes | 4 × Ø 4.2 mm countersunk, 90° |
| Max door weight* | 3 kg per pair (*wood density ≥ 650 kg/m³) |
| Operating angle | 0 – 270° |
| Manufacturing methods | Stamping → barrel-forming → pin-insertion → powder-coating → QC |
| Certification | ISO 9001:2015, RoHS-compliant coating |
Key Advantages
-
Compact strength – 1.2 mm steel leaves withstand > 15 000 open-close cycles without deformation.
-
Vintage appeal – low-gloss black antique patina pairs with industrial, loft or farmhouse interiors.
-
Quick installation – standard 4.2 mm CSK holes accept #6 wood screws; pilot dimples eliminate wander.
-
Customisable – laser logo, mixed finishes (zinc, brass, PVD), or non-standard sizes available within 15 days.
Typical Applications
Small cabinet doors • cigar humidors • collectible display frames • DIY craft boxes • hotel minibar lids.
MOQ & Lead-Time
MOQ 1 000 pcs. Standard lead-time: 10 – 15 working days after 30 % deposit (rush < 7 days negotiable).
Packaging & Shipping
50 pcs/polybag → 500 pcs/carton (32 × 24 × 18 cm, 16 kg). Cartons palletised & stretch-wrapped; FSC cartons & plastic-free inner packs on request.
How to Install
-
Mark hinge centreline 4 mm from door edge.
-
Pre-drill Ø 2 mm × 10 mm pilot holes.
-
Fix leaf to door with #6×12 mm CSK screws; align partner leaf to frame, check 0.5 mm clearance.
-
Tighten screws, test swing; apply wax to knuckle if required.
