Product Overview

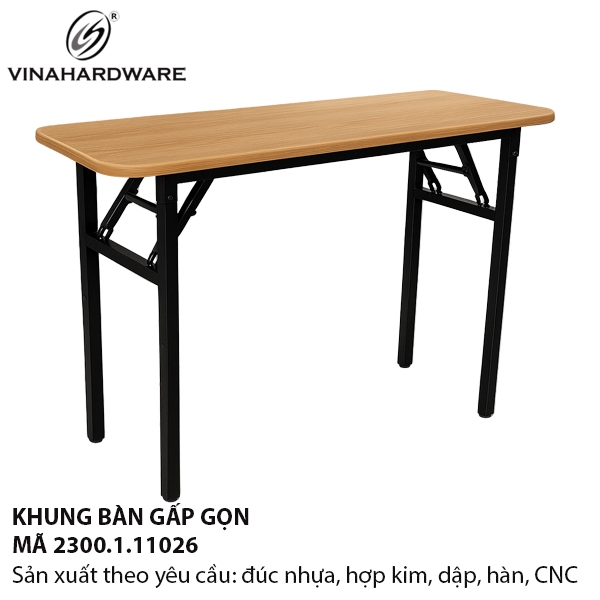

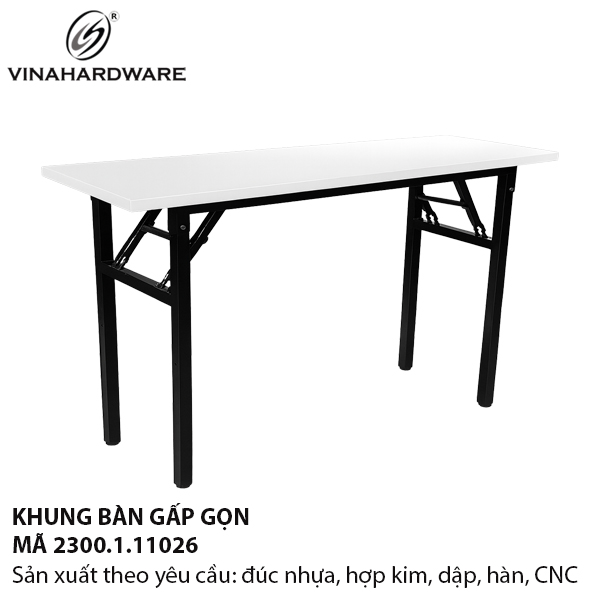

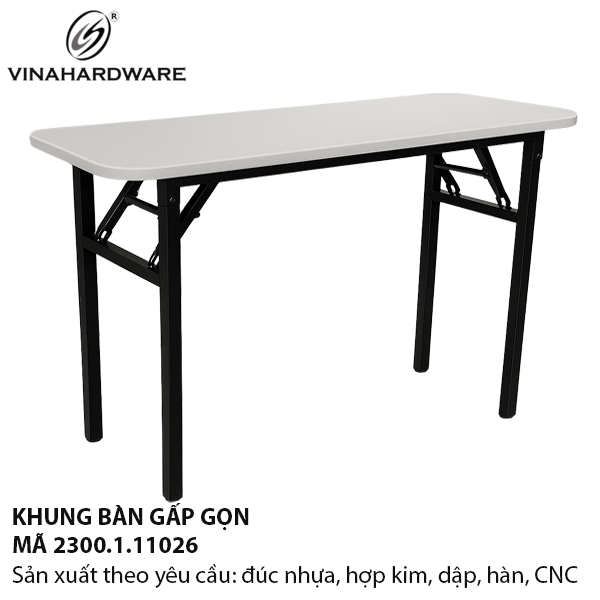

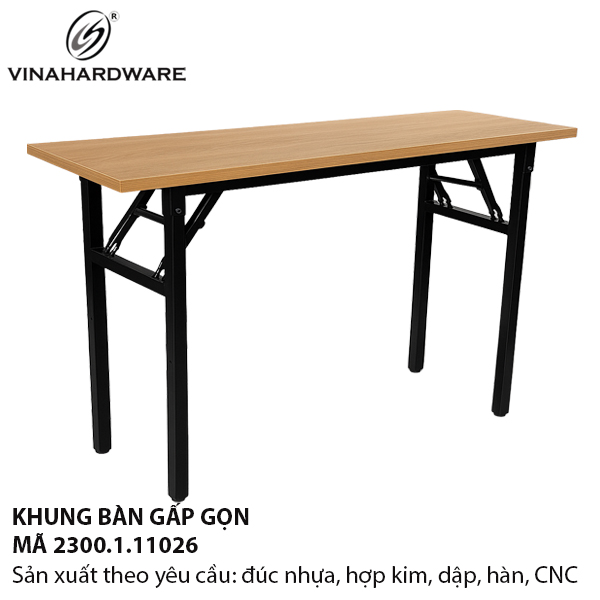

The 2300.1.11026 folding table frame by Vinahardware is a professional-grade, export-ready frame engineered for versatility and durability. Designed to serve multiple markets — outdoor catering, corporate offices, banquet halls, restaurants, hotels and temporary event setups — this folding frame provides fast deployment, compact storage and reliable daily function. It supports a wide range of tabletop materials including MDF melamine, high-pressure laminate (HPL), compact laminate, PVC-faced tops and stainless steel tops, while meeting international quality and packaging standards for global shipping.

Design & Construction

• Frame Material: High-quality mild steel tube or square section (commonly 25×25 mm or 30×30 mm), wall thickness is 1.5 mm standard with optional upgrade to 2.0 mm for heavy duty or larger spans.

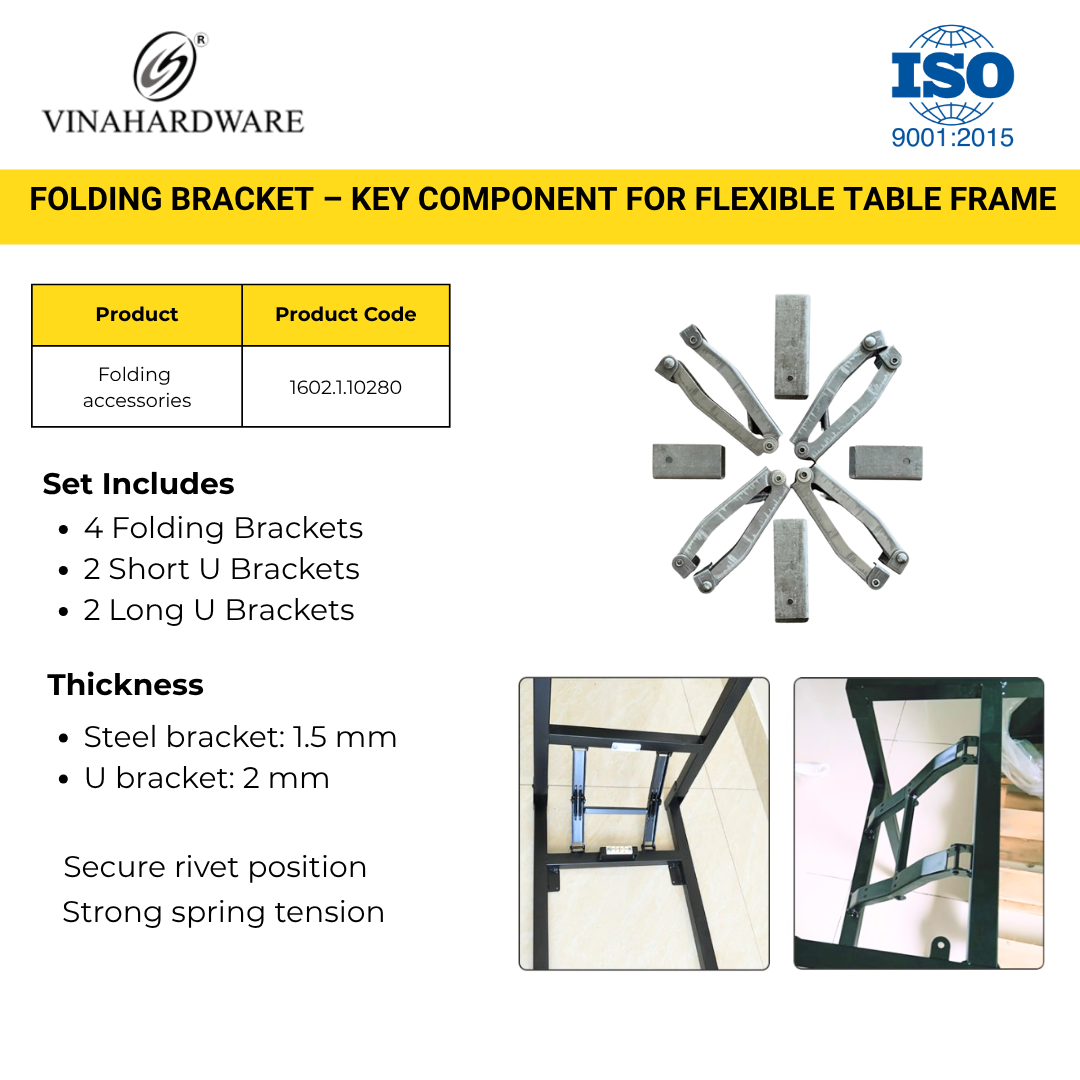

• Folding Mechanism: Precision punched and folded mounting brackets (gussets) with welded hinge assemblies provide stable open position and secure locking. The foldable legs tuck neatly beneath the top, enabling flat-pack shipping and compact onsite storage.

• Reinforcements: Horizontal bracing members positioned under the tabletop provide stiffness and prevent flexing or deformation for longer tops. For tops over 1800 mm in length, additional bracing is recommended.

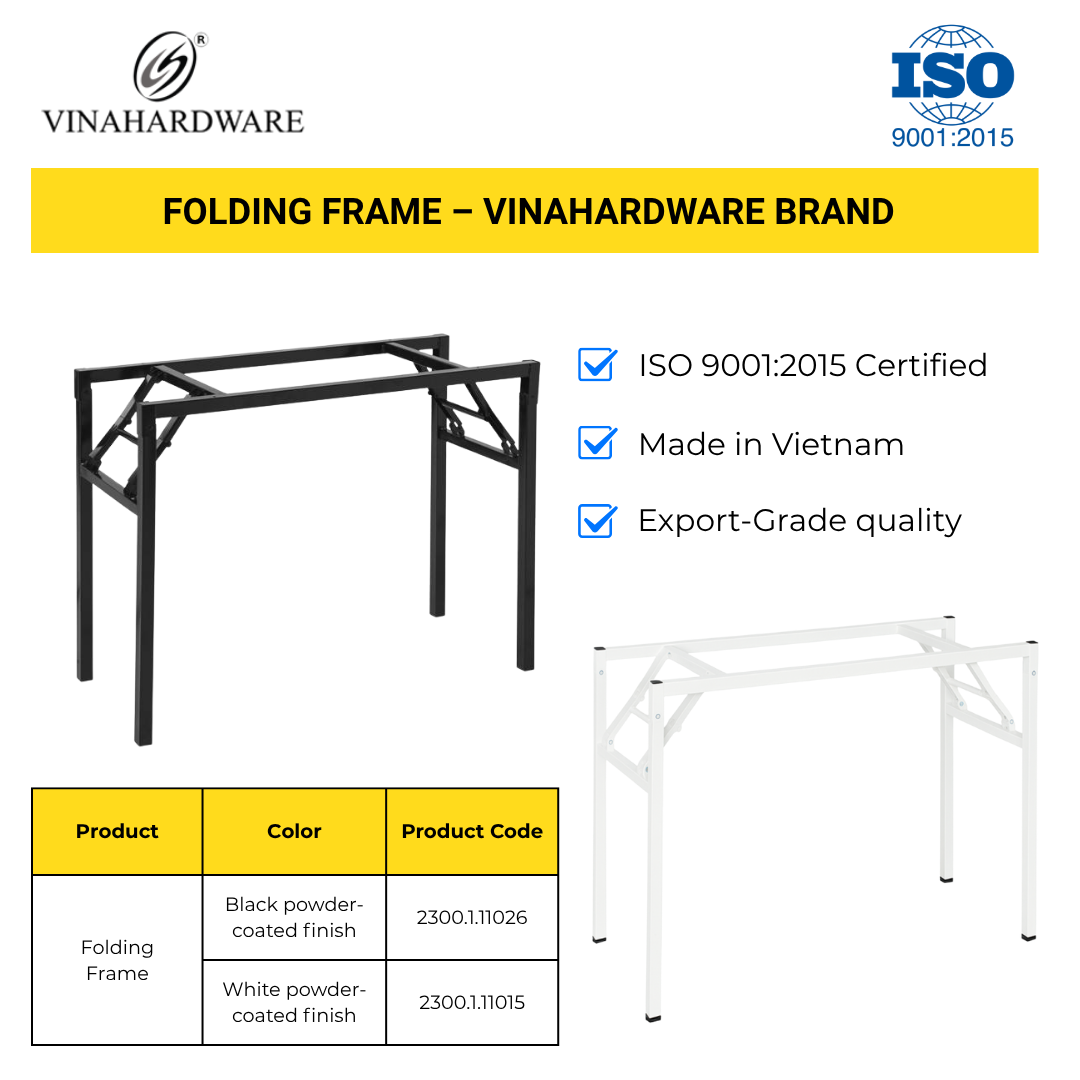

• Finish: Pre-treatment with phosphating to remove surface contaminants followed by advanced powder coating in Vinahardware’s finishing line. The powder coat offers excellent adhesion, wear resistance and UV stability. Color options are available per RAL chart and can be matched to customer samples.

Features & Benefits

• Rapid Setup & Takedown: The folding design enables deployment in under a minute per table, ideal for events where speed and efficiency are crucial.

• Export Grade Quality: Component tolerances, weld quality and surface finish are production-tested to meet export requirements. Each batch is inspected for dimensional accuracy, welding integrity and coating consistency.

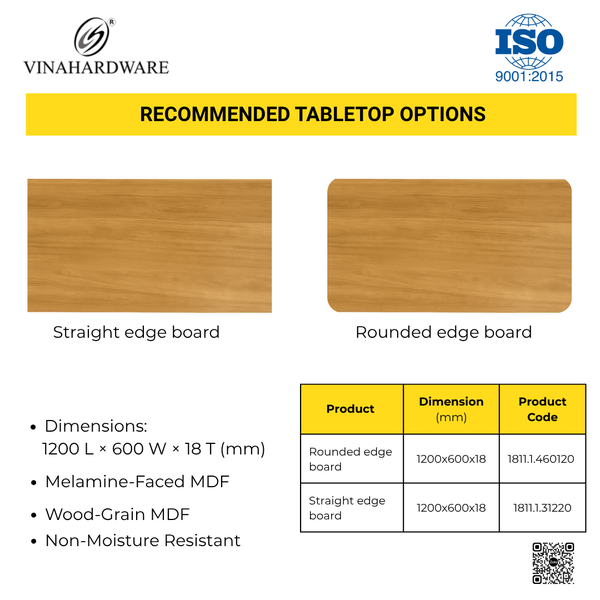

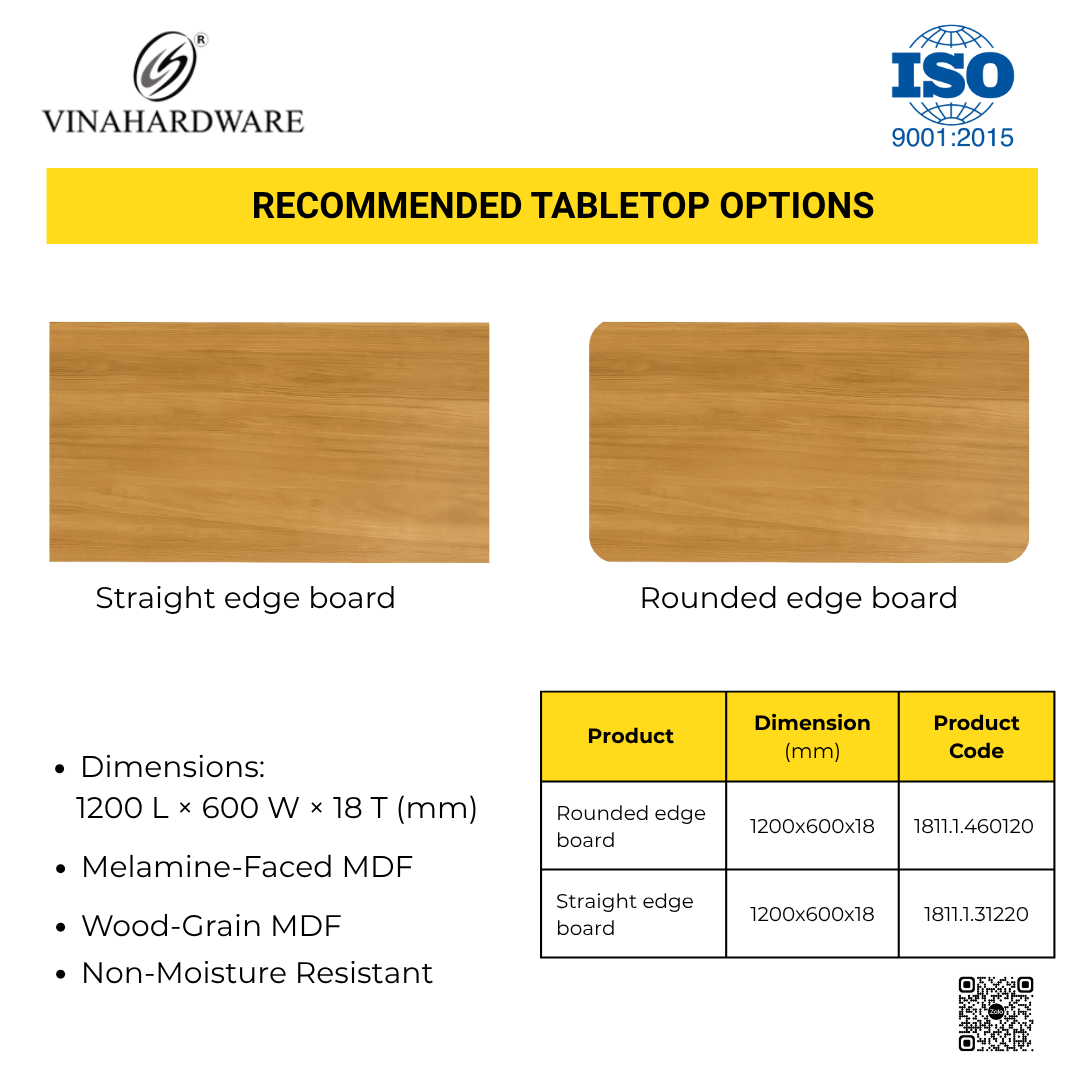

• Multi-Material Compatibility: Accepts a variety of tabletop materials and thicknesses (12–30 mm), enabling application from casual outdoor dining to premium hotel banquet setups.

• Durability & Maintenance: Powder-coated steel resists corrosion and abrasion; replaceable foot pads protect floors and are easy to swap when worn. Basic maintenance includes periodic tightening of fastening hardware and cleaning with mild detergent.

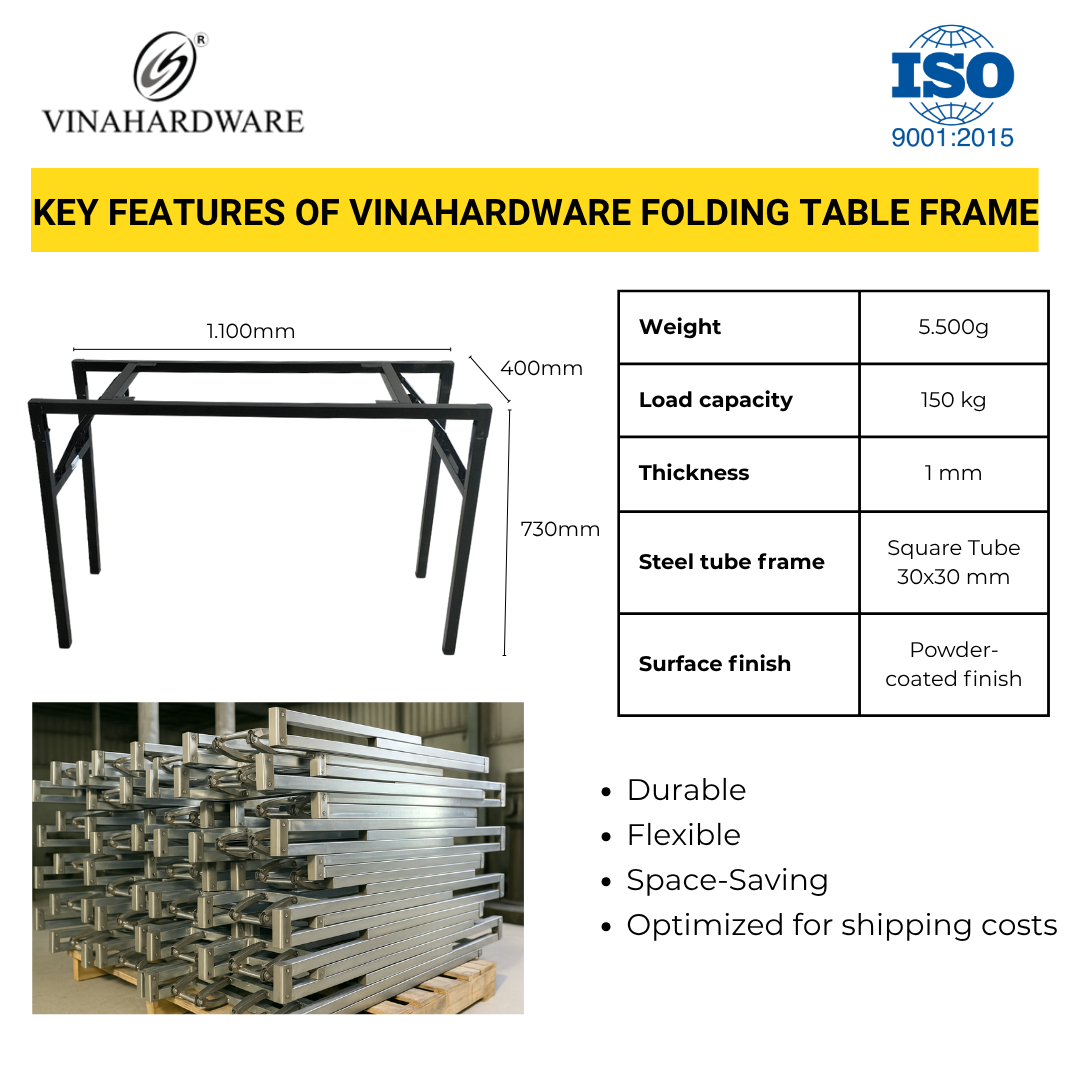

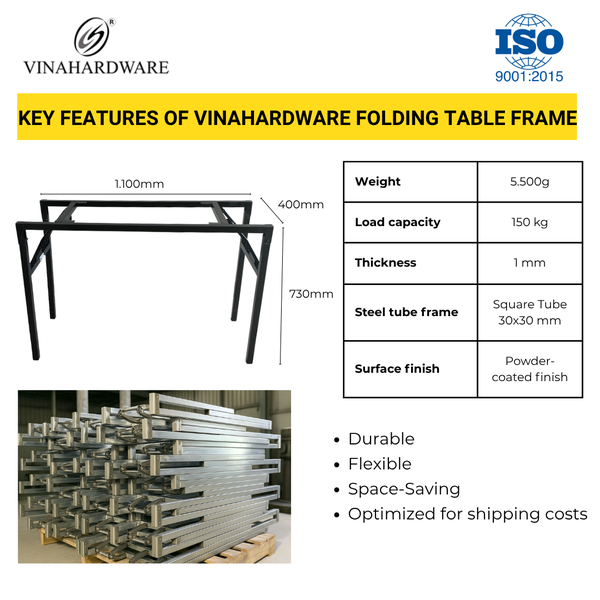

Technical Specifications (Typical)

• Model: 2300.1.11026

• Material: Mild steel tube / box section (25–30 mm)

• Standard Wall Thickness: 1.5 mm (upgradable to 2.0 mm)

• Finish: Phosphate pre-treatment + powder coat (Vinahardware standard)

• Compatible Top Sizes: Multiple – e.g., 1200×600 mm, 1400×700 mm, 1500×750 mm, up to 2000×800 mm with reinforcement

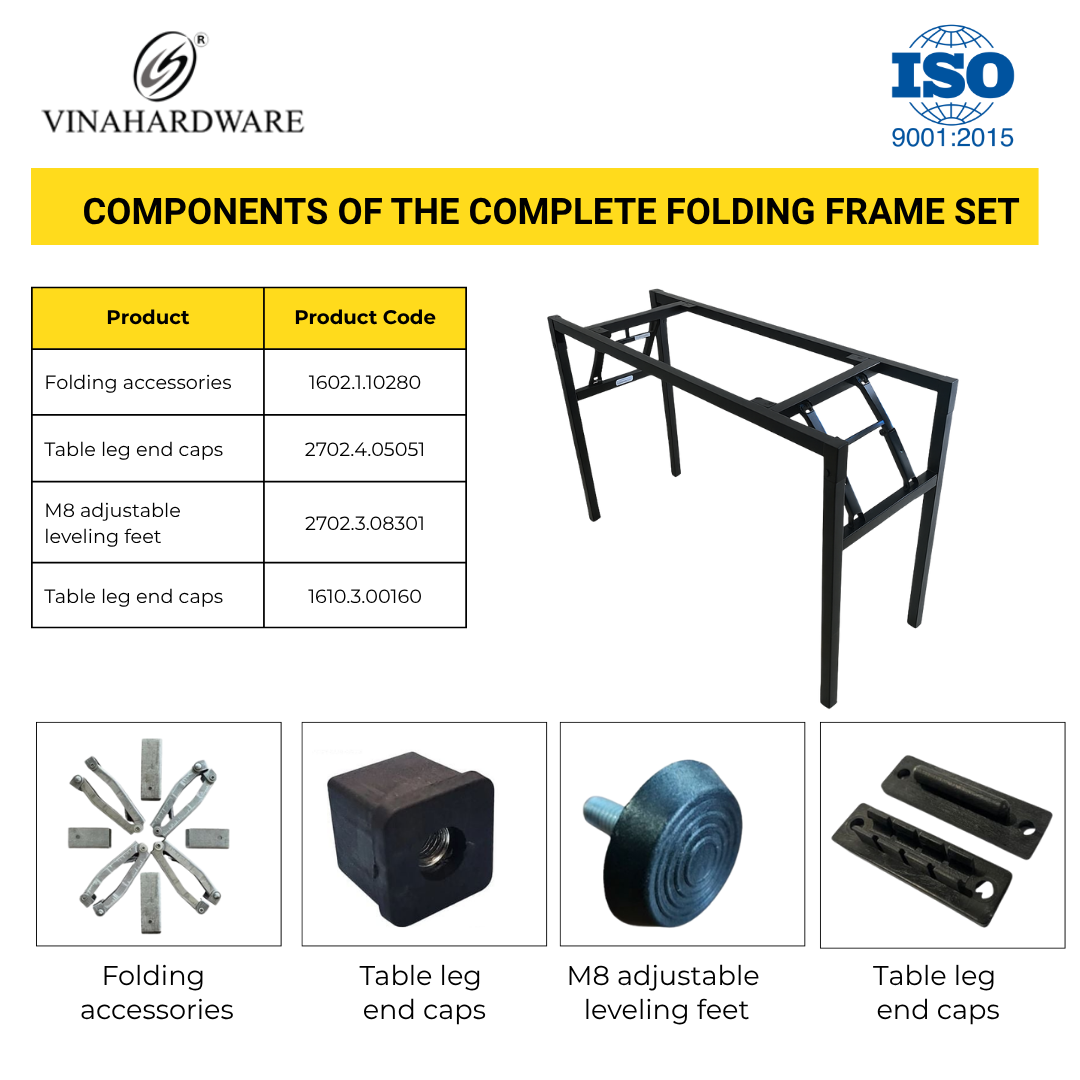

• Accessories: Mounting plate with pre-drilled holes, M8 hardware set, protective foot pads, assembly instruction sheet

• Testing: Cycle test (1,000 cycles), static load test (subject to top dimensions and bracing) and coating adhesion tests.

Quality Control & Testing

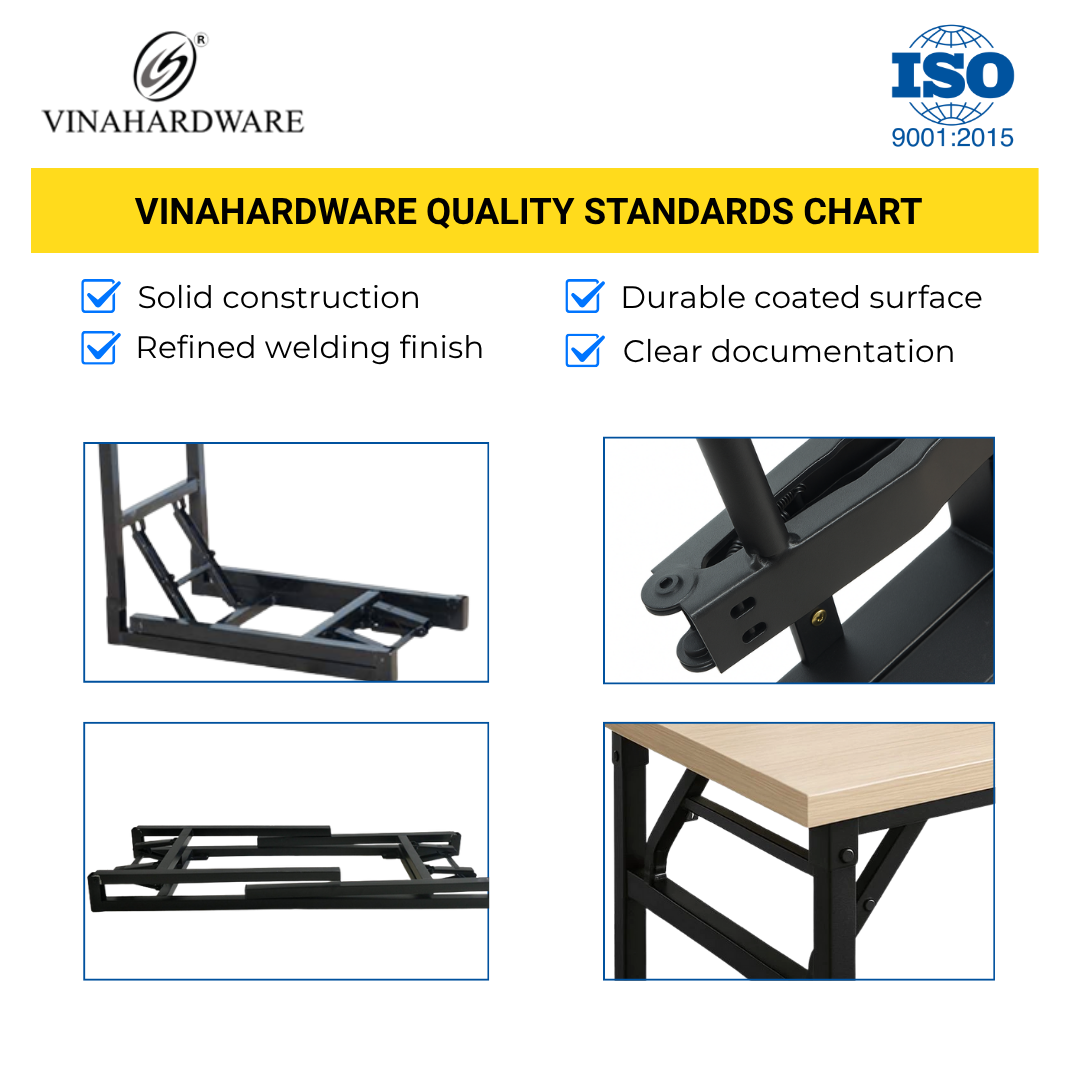

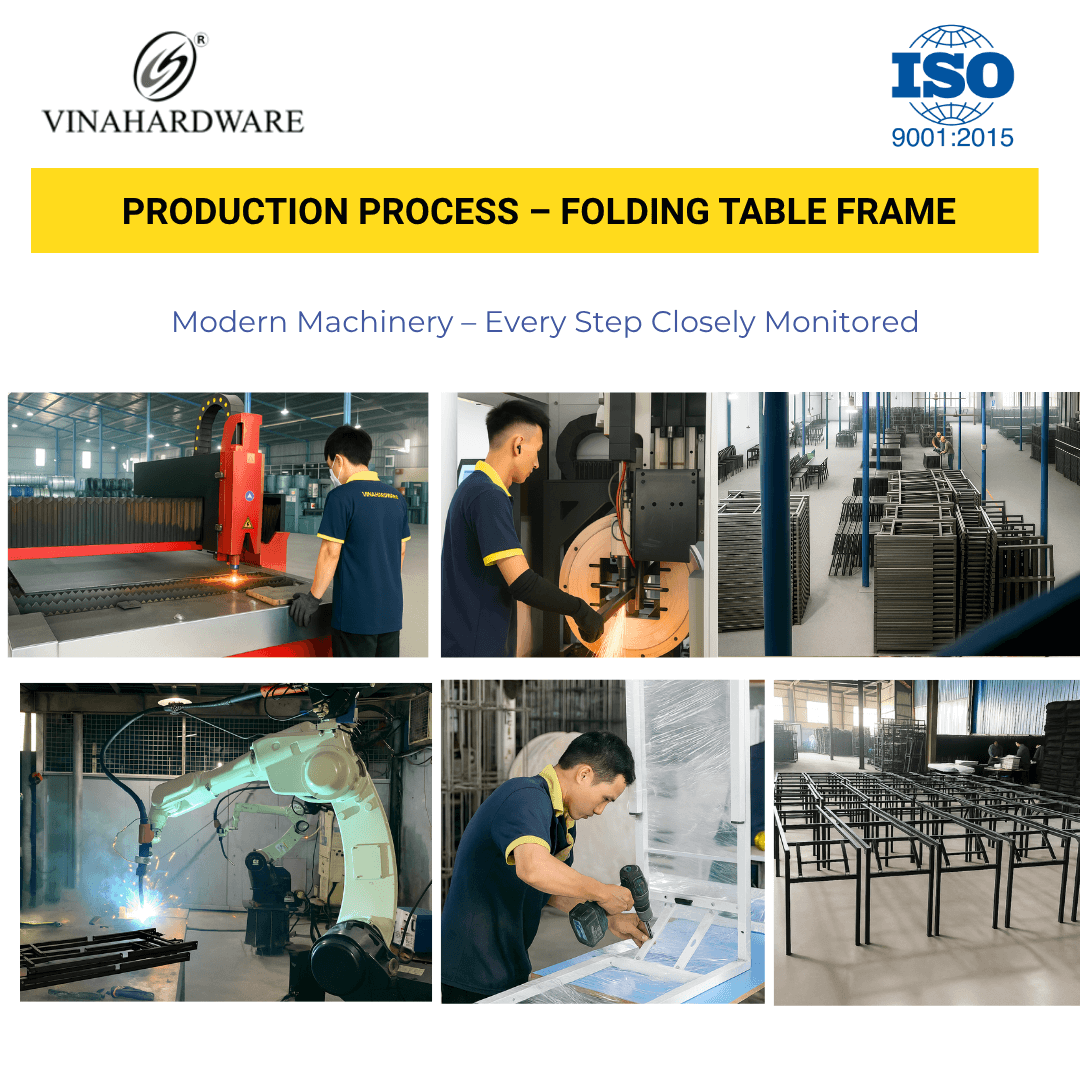

Vinahardware enforces a rigorous quality control protocol. Weld seams are visually and mechanically inspected, structural components are measured to tolerance, and pre-shipment testing includes repeated open/close cycles to ensure hinge longevity. The coating process is evaluated with adhesion (cross-cut) and thickness measurements to meet export reliability.

Packaging & Logistics

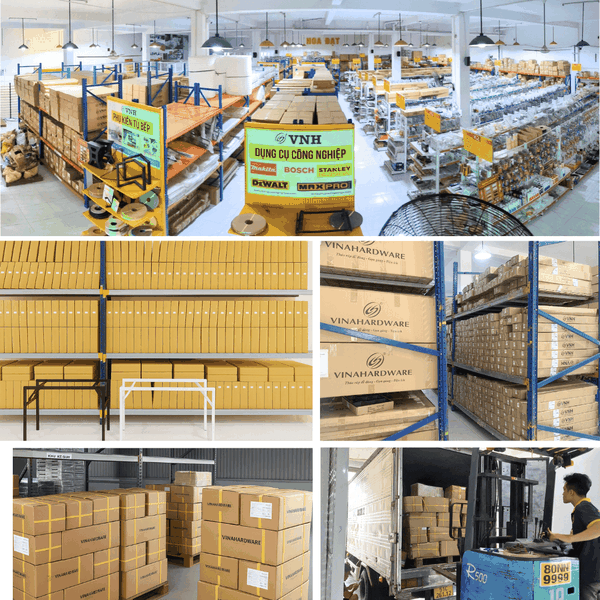

• Flat-Pack: Frames are shipped in flat-pack configuration to minimize freight costs. Each unit is wrapped in PE film, foam corner protectors and secured on export pallets when necessary.

• Documentation: For export orders, Vinahardware can provide packing lists, commercial invoices and custom documentation on request. Crating options are available for long-distance ocean freight.

Customization & Project Support

Vinahardware offers customization options including alternative tube profiles, reinforced bracing patterns for larger tops, specific powder coat colors, and bespoke hole patterns for client tabletops. Project services include: prototype approval, sample runs, production tooling, and on-site consultation for installation and layout optimization.

Applications

• Outdoor & Catering: Portable dining sets for pop-up events and outdoor festivals.

• Hospitality & Restaurants: Banquet tables, buffet lines and flexible seating arrangements for hotels and restaurants.

• Corporate & Education: Training tables, conference layouts and multi-purpose meeting rooms.

• Event & Exhibition: Rapidly deployable tables for expos, fairs and temporary retail stands.
