Product Overview

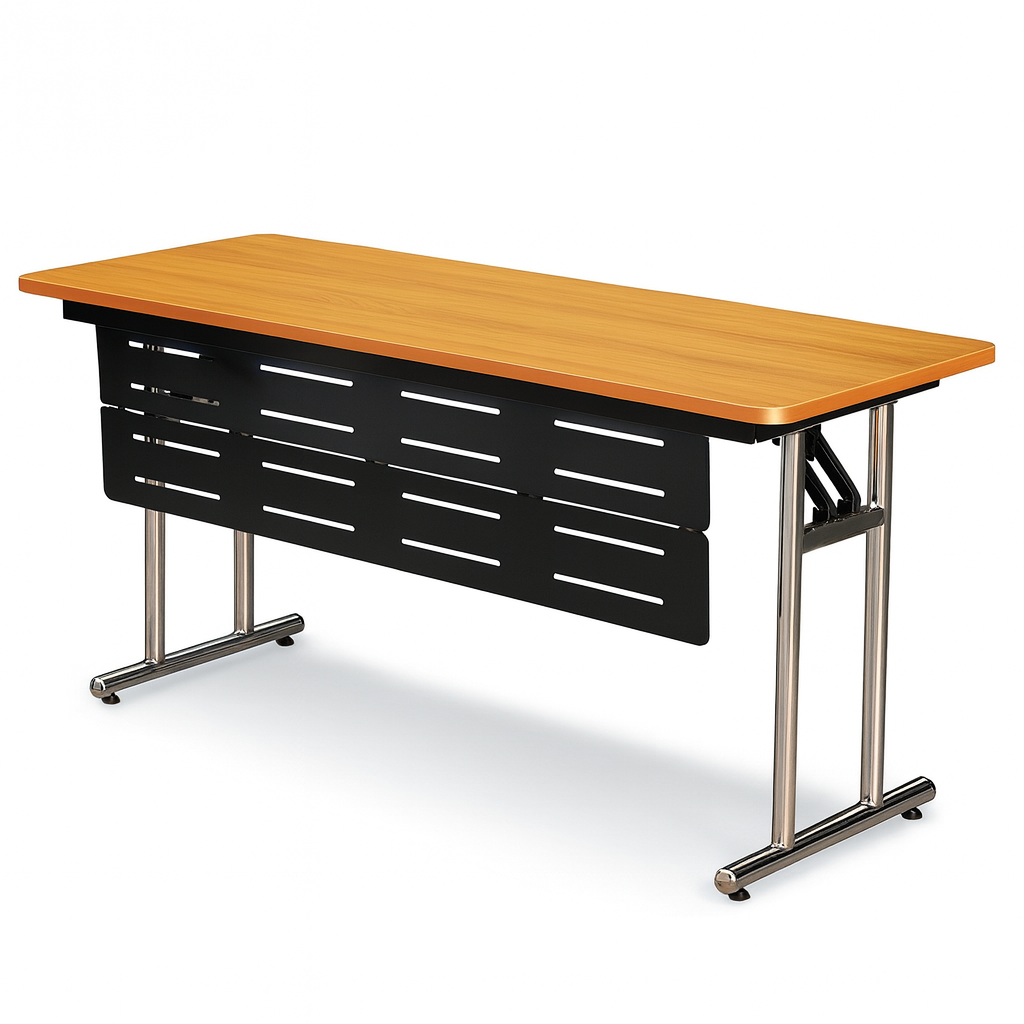

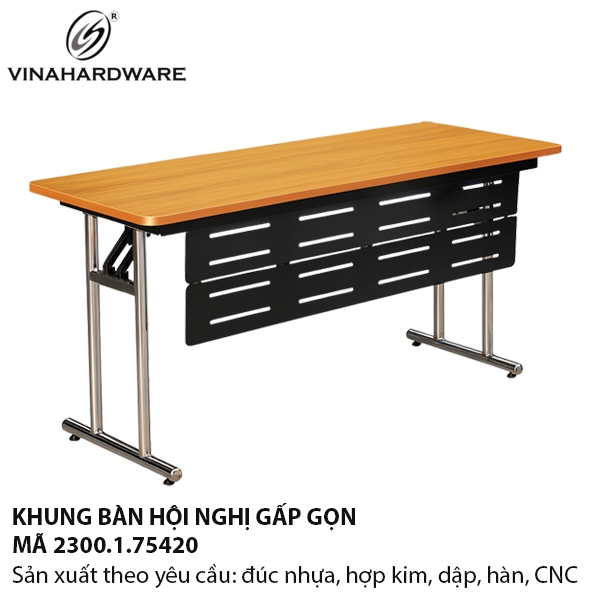

The 2300.1.75420 folding conference table frame from Vinahardware is an export-grade solution engineered for hotels, restaurants, event venues and large-scale projects requiring convenient transport, quick on-site setup and long-term durability. The frame features polished SUS304 stainless steel legs, precision folding brackets and a compact packed footprint of 1760 × 560 × 80 mm, making it ideal for high-volume logistics and repetitive event deployment. This model combines the elegance and corrosion resistance of stainless steel with a robust folding mechanism designed for commercial use.

Design & Materials

• Legs: SUS304 stainless steel, mirror / BA finish. The use of SUS304 ensures excellent corrosion resistance and hygiene properties, suitable for food service environments and heavy-use commercial applications.

• Folding mechanism: Punched and folded connection plates, welded hinge assemblies and secure locking pins ensure the frame locks firmly in the open position. When folded, the legs tuck flat under the top, enabling low-volume packing for shipment.

• Modesty panel & reinforcements: A steel modesty panel (powder-coated) can be included to conceal under-top wiring and provide aesthetic continuity. Horizontal bracing members and welded stiffeners are positioned under the tabletop to minimize deflection on longer tops.

• Compatibility: Compatible with a range of tabletop materials including MDF melamine, HPL, compact laminate, and stainless steel tops (12–30 mm thickness, custom sizes).

Key Features & Benefits

• Compact packing: With a packed size of 1760 × 560 × 80 mm, the frame minimizes freight costs by maximizing container/pallet utilization.

• Commercial-grade performance: Designed and tested for frequent open/close cycles; hinge and lock components are selected for fatigue resistance.

• Elegant finish: Polished SUS304 legs provide a premium look suitable for hospitality applications while delivering superior durability versus painted carbon steel.

• Quick setup: Bolt-on mounting plate with pre-drilled holes enables fast installation of tabletops at venues. One technician can typically assemble a table within minutes.

Technical Specifications (Typical / Configurable)

• Model: 2300.1.75420

• Material: SUS304 stainless steel legs; mild steel stiffeners & modesty panel (powder-coated standard)

• Packed dimensions: 1760 × 560 × 80 mm

• Compatible top sizes: Custom—common examples: 1800×600 mm, 2000×800 mm (additional reinforcement recommended for long spans)

• Accessories: M8 hardware kit, rubber foot pads, assembly instructions

• Finish options: BA (mirror), No.4 brushed, or custom powder-coat color for the modesty panel

Quality Control & Testing
Vinahardware enforces strict QC procedures: weld seam inspections, dimensional verification, coating thickness checks and operational cycle testing (1,000 cycles). Static load testing verifies stiffness and safety for commercial seating loads. For export orders, we provide inspection reports and can accommodate third-party inspection upon request.

Packaging & Shipping

• Flat-pack approach: Frames are supplied flat-packed, wrapped in protective film and foam, secured with corner protectors and palletized for ocean or land freight. The compact packed size reduces shipping costs and simplifies on-site logistics.

• Documentation: Packing lists, commercial invoices and export documentation can be provided as required.

Customization & Project Support
Vinahardware supports customization to meet project needs: alternate leg tube profiles, additional cross-bracing for wide tops, tailored hole patterns for customer tops and branding on modesty panels. We offer prototype approval, sample boards and production tooling services for large orders. Our engineering team can produce layout plans for venues to optimize table placement and logistics.

Applications

• Banquet and conference halls, hotel ballrooms

• Restaurant and catering operations requiring rapid deployment tables

• Exhibition stands and corporate events with frequent table setup/teardown

• Training centers and multi-purpose meeting rooms
