Detachable Steel Table Frame – Model 2300.1.16416

Detachable Steel Table Frame – Model 2300.1.16416

Overview:

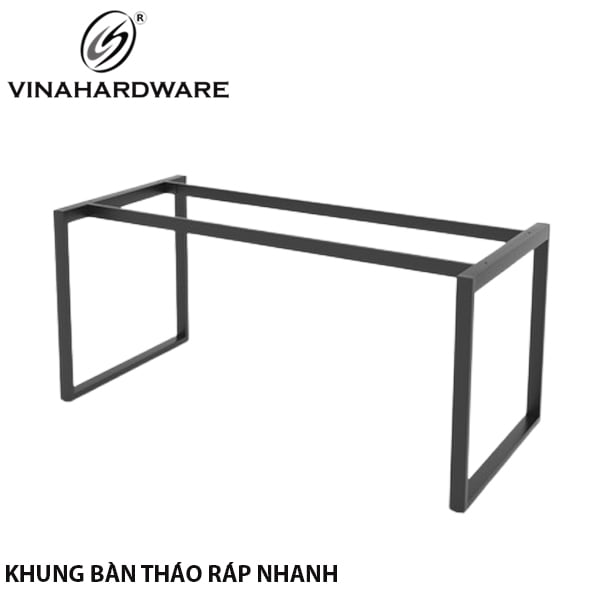

The Vinahardware detachable table frame model 2300.1.16416 is designed for maximum flexibility, strength, and aesthetics. Made from high-grade 40×40mm steel tubes with a matte black powder coating, this frame allows for quick assembly and disassembly using Vinahardware’s exclusive male-female interlocking joint system, providing excellent rigidity while simplifying installation.

Technical Specifications:

• Product Code: 2300.1.16416

• Material: Carbon steel tubes

  • Legs: 40×40 mm (thickness 1.2 mm)

  • Crossbars: 25×50 mm (thickness 1.2 mm)

• Surface Finish: Matte black powder coating

• Connection System: Male-female interlocking joints (no welding during installation)

• Manufacturing Process: CNC cutting, CO₂ welding, powder coating

• Standard Dimensions: Length 1200 mm × Width 600 mm × Height 730 mm

• Load Capacity: up to 200 kg

Advantages:

• Quick assembly and disassembly without the need for tools.

• Rigid and stable frame with interlocking system for precision alignment.

• Durable electrostatic coating resistant to scratches, rust, and humidity.

• Flat-pack design saves space in storage and transportation.

• Compatible with wooden, MDF, or marble tabletops.

• Ideal for export markets requiring modular furniture solutions.

Applications:

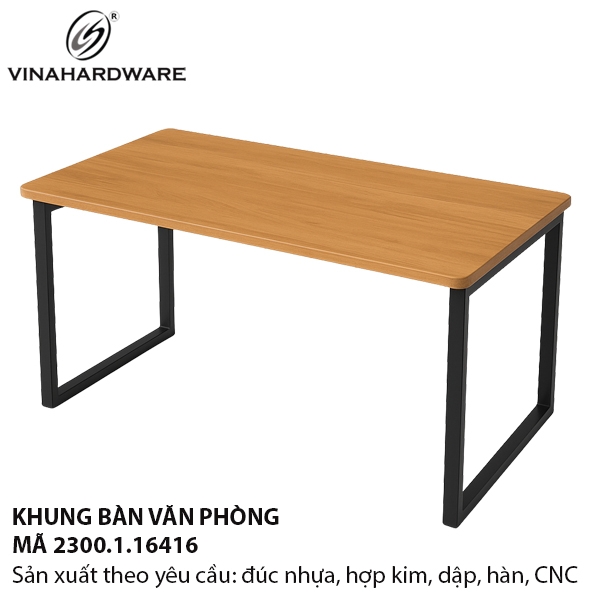

Perfect for home desks, dining tables, café tables, or office workstations. Its minimalist rectangular design complements various interior styles including modern, industrial, and Scandinavian aesthetics.

Customization & OEM Service:
Available in multiple colors, dimensions, and connection designs. Vinahardware provides full OEM/ODM support to meet your branding and packaging requirements.

MOQ & Delivery Time:

• MOQ: 50 sets

• Delivery: 20–25 days after order confirmation
