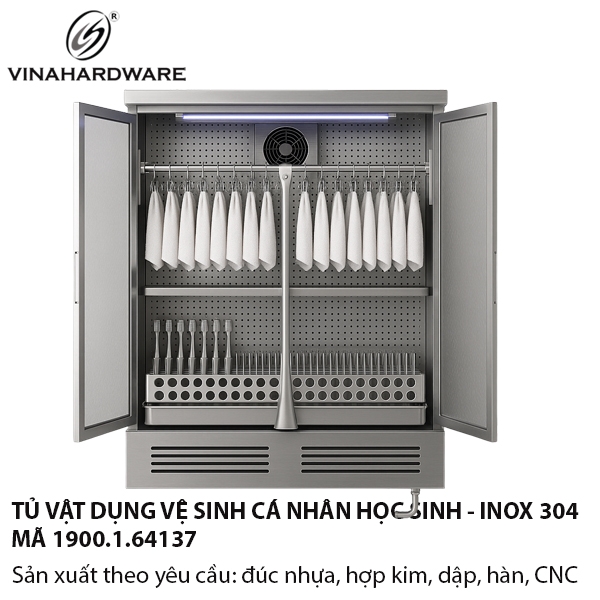

Vinahardware UV Sterilizing Wall-Mounted Oral Hygiene Cabinet – Model 1900.1.64137

Vinahardware UV Sterilizing Wall-Mounted Oral Hygiene Cabinet – Model 1900.1.64137

Product Description:
The Vinahardware Model 1900.1.64137 is a stainless steel UV sterilizing cabinet designed for schools, dormitories, hospitals, and community spaces.
It safely stores mouthwash cups, toothbrushes, and towels, integrating UV-C disinfection, air circulation, and drainage systems for full hygiene protection.

Structure Details:

• Cabinet Frame: SUS 304 stainless steel tube (30×30 / 40×20 mm), TIG welded, brushed finish

• Doors: Stainless + frosted glass (or perforated panels)

• Back & Sides: Perforated stainless sheet Ø6–Ø10 mm

• Shelves: Cup tray Ø70–75 mm, toothbrush holes Ø12–15 mm

• Towel bar: 30 stainless clips divided into 3–4 sections

• UV Lamp: 253.7 nm UV-C, IP65, auto-off safety switch

• Fan: 12V DC exhaust fan with dust filter (18–30 m³/h)

• Drip Tray: Removable PP or stainless tray with drain Ø10–16 mm

• Electrical Safety: Ground wire 2.5 mm², insulated connectors, waterproof cable routing

Dimensions (Recommended):

• Width: 1800–2000 mm

• Height: 900–1050 mm

• Depth: 380–430 mm

Key Features:

• Integrated UV sterilization and drying function

• Safe system – UV automatically turns off when door opens

• Hygienic stainless design with full drainage

• Quiet air circulation prevents mold and odor

• Modular trays for 40 users (cups + toothbrushes + towels)

Applications:
Schools • Dormitories • Clinics • Senior care centers • Public facilities

Protection Standard: IPX4–IPX5
Power: 12V DC system
OEM/ODM: Available
Warranty: 24 months
