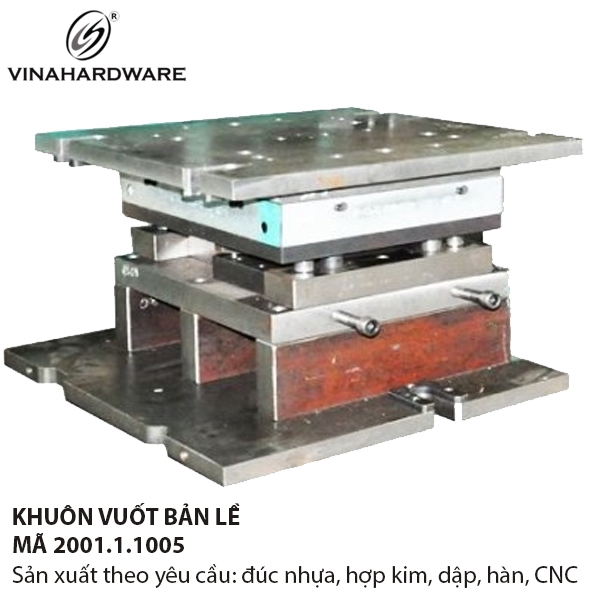

Hinge Drawing Die – Model 2001.1.1005

Hinge Drawing Die – Model 2001.1.1005

Product Overview

The Hinge Drawing Die 2001.1.1005 is a specialized mold designed for producing hinge components such as butt hinges, piano hinges, and barrel hinges. It supports various die types (M5, M6, M7, M8, M10…) and is engineered to roll and shape steel sheets into precise cylindrical hinge structures.

Technical Specifications

• Model: 2001.1.1005

• Die Types: M5, M6, M7, M8, M10 (custom sizes available)

• Application: Forming steel sheets into hinge tubes for hinge components

• Material: High-strength alloy steel, heat-treated for durability

• Processes Supported: Drawing, stamping, CNC machining, welding

• Precision: High accuracy, suitable for mass production

Features & Advantages

• Durable Material: Alloy steel construction ensures long service life.

• Versatile Applications: Suitable for multiple hinge types.

• High Precision: Consistent shaping with minimal errors.

• Customizable: Die sizes can be tailored to client requirements.

Applications

• Furniture hinges

• Piano hinges

• Industrial barrel hinges

• Hardware component manufacturing
