Bed Steel Bracket Stamping Die Set – Model 2201.1.1001

Bed Steel Bracket Stamping Die Set – Model 2201.1.1001

Product Overview

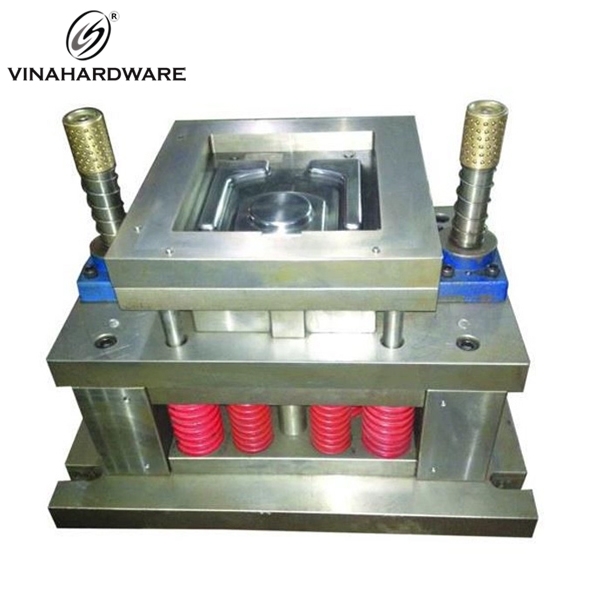

The Bed Steel Bracket Stamping Die Set 2201.1.1001 is a high-precision toolset designed for mass production of U-shaped steel brackets for bed frames. This set includes four different dies: Blanking Die, Large Head Punch Die, Small Head Punch Die, and Drawing Die, ensuring accuracy and efficiency in every production stage.

Technical Specifications

• Model: 2201.1.1001

• Die Components: Blanking die, large head punch die, small head punch die, drawing die

• Application: Manufacturing U-shaped steel brackets for bed frames

• Material: High-strength tool steel, heat-treated for durability

• Compatible Machines: Hydraulic press, mechanical stamping machine

• Tolerance: High precision, suitable for continuous production

Production Process

1. Blanking: Cutting the steel sheet into pre-shaped parts.

2. Head Punching (Large & Small): Forming accurate hole positions.

3. Drawing/Forming: Shaping the final U-bracket with smooth edges.

4. QC Inspection: Ensuring consistent size and strength for bed frame assembly.

Product Advantages

• High Durability: Made of premium tool steel with heat treatment.

• Cost-Effective: Optimized for high-volume production with long service life.

• High Precision: Consistent and accurate bracket dimensions.

• Customizable: Die dimensions can be adjusted according to customer requirements.

Applications

• Bed frame manufacturing

• Furniture hardware production

• Heavy-duty steel structure support
