Cross-Dowel & Countersunk Hex-Socket Bolt Set – Code 8130.0.69014

  • Status: Out of stock
  • Vendor: Vinahardware
Contact
cross dowel

Cross-Dowel & Countersunk Hex-Socket Bolt Set – Code 8130.0.69014

Key Facts Details
Available Threads M6 × 45 / 50 / 60 mm  •  M8 × 50 / 60 / 70 mm (custom lengths on request)

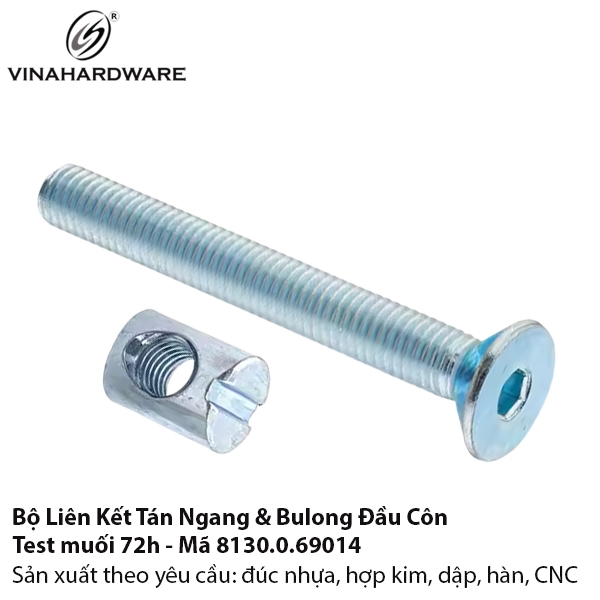

Set Components ❶ Zinc-plated cross-dowel
❷ Countersunk Allen-drive bolt (90 ° cone head)
Materials Bolt: 8.8 carbon steel, blue-white Cr³⁺ zinc
  Dowel: C1018 steel, slotted, blue-white Cr³⁺ zinc
Corrosion Test ≥ 72 h salt-spray (ASTM B117) – no red rust
Pull-out Strength ≥ 1 200 N in 18 mm MDF (M6)
Head Drive Internal hex – M6: 4 mm • M8: 5 mm
Tolerances Thread concentricity ≤ 0.05 mm
MOQ 10 000 sets / size
Lead Time 12 – 15 days after 30 % deposit
Packing 100 sets / poly-bag → 40 bags / carton

Product Overview

The 8130.0.69014 cross-dowel system delivers rock-solid joints for flat-pack furniture. A fine-thread socket bolt pulls the mating panel tight, while the slotted dowel spreads load across the grain, preventing split-outs even in 16 mm particleboard. Fully zinc-plated for 72-hour salt-spray, the set is ready for export or humid warehouse storage.

Competitive Advantages

  • Cone-head seats flush—perfect for visible worktops.

  • Allen drive = faster assembly and no cam marks.

  • Threads, head length, plating colour (black / yellow) customisable in 7 days.

Typical Applications

KD wardrobes • Bed frames • Classroom desks • Shop-fit counters • Exhibition booths.

Need the drilling jig file? Click “Contact Supplier” and get a CAD in < 12 h.
