Cross-Dowel & Black-Oxide Countersunk Hex-Socket Bolt Set – Code 8130.0.06501
- Status: Out of stock
- Vendor: Vinahardware
Contact

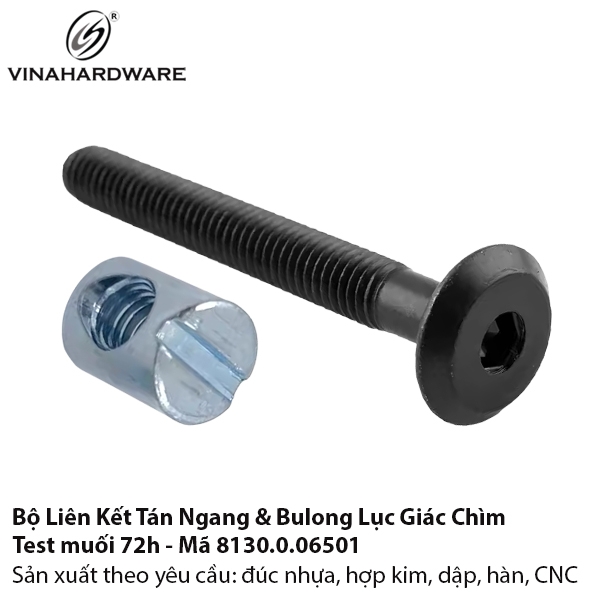

Cross-Dowel & Black-Oxide Countersunk Hex-Socket Bolt Set – Code 8130.0.06501
| Key Facts | Details |
|---|---|
| Available Threads | M6 × 45 / 60 mm • M8 × 50 / 70 mm (lengths in 5 mm steps on request) |
| Kit Components | ❶ Cross-dowel – blue-white Cr³⁺ zinc ❷ Countersunk bolt – black-oxide, internal-hex |
| Materials | Bolt: Class 8.8 carbon-steel • Dowel: C1018 steel |
| Head / Drive | 90 ° flat-cone, Ø 16 mm (M6) |
| Corrosion Test | ≥ 72 h salt-spray (ASTM B117) – no red rust |
| Tensile Clamp | ≥ 1 300 N (M6) in 18 mm MDF |
| Finish Colours | Bolt: satin-black oxide Dowel: bright zinc (other colours on request) |
| MOQ | 10 000 sets / size |
| Lead Time | 12 – 15 days after 30 % deposit |
| Packing | 100 sets / poly-bag → 40 bags / carton (≈ 13 kg) |
Product Overview
Vinahardware’s 8130.0.06501 fastener set pairs an elegant black-oxide, countersunk bolt with a bright zinc cross-dowel—perfect for visible joints in dark-laminate furniture. A single 90° cone head sits flush, while the dowel’s long slot allows easy alignment with a screwdriver. Fully tested to 72-hour salt spray, the set withstands sea-freight humidity and warehouse storage alike.
Competitive Advantages
-
High-contrast black bolt hides in charcoal or walnut finishes.
-
Allen drive speeds assembly and avoids cam scratches.
-
Fine-pitch threads minimise edge blow-out in particleboard.
-
OEM logo stamping, alternative plating (yellow / black zinc) within 7 days.
