Steel Bed-Frame Angle Bracket – Model 1600.3.82977
- Status: Out of stock
- Vendor: Vinahardware
Contact
Steel Bed-Frame Angle Bracket – Model 1600.3.82977 | VINAHARDWARE
Product Overview

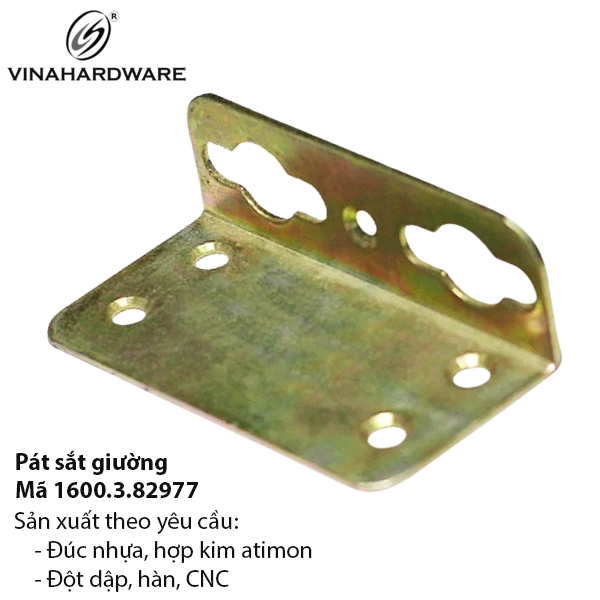

Model 1600.3.82977 is a right-angle connector for knock-down wood or metal bed frames. Fabricated from 2 mm cold-rolled steel and finished with rainbow zinc plating, the part ensures quick assembly, corrosion resistance and high structural stability.
| Item | Specification |
|---|---|
| Material | Cold-rolled steel, thickness 2 mm |
| Surface Finish | Yellow-chromate (rainbow) zinc plating |
| Overall Size | Length 90 mm × Width 45 mm (base) × Height 30 mm (upright) |
| Mounting Holes | 4 Ø5 mm screw holes + 2 key-slot holes |
| Design | 90° bent plate, single component |
| Application | Bed-rail to post connection, knock-down furniture |
Key Advantages
-
2 mm gauge steel → high load capacity, no wobble
-
Two key-slot holes speed up rail engagement/detachment
-
Rainbow zinc coating protects against rust, ideal for export storage
-
Smooth edges & countersinks prevent wood fiber damage
-
OEM logo stamping & custom sizes available
MOQ 1 000 sets | Lead Time 10-15 working days | OEM/ODM Supported
