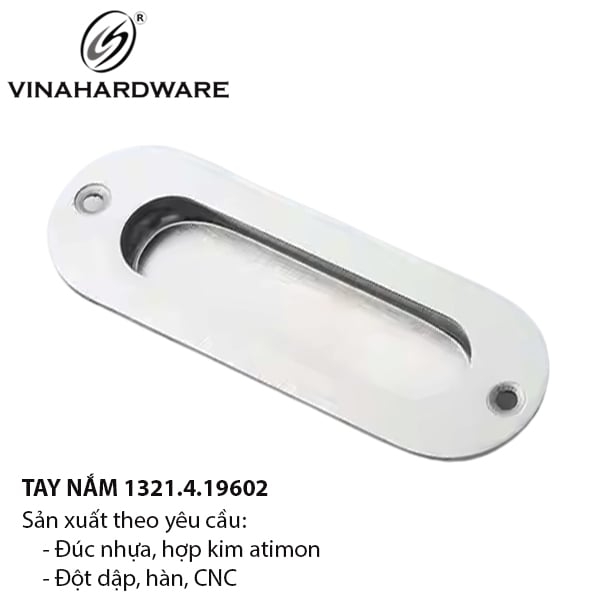

Stainless-Steel Flush Pull Handle – 96 mm C-to-C
Model No.: 1321.4.19602 | Brand: VINAHARDWARE
Product Overview
VINAHARDWARE’s 1321.4.19602 recessed pull is pressed from corrosion-resistant SUS 201 stainless steel and mirror-polished for a sleek, contemporary aesthetic. The slim cup design mounts flush with the door surface, making it ideal for sliding wardrobe doors, pocket doors, drawers and yacht cabinetry where protruding knobs are undesirable.
| Parameter | Specification |
|---|---|
| Overall size | 120 mm (L) × 32 mm (W) × 10 mm (D) |
| Screw-hole spacing | 96 mm centre-to-centre |
| Cup depth | 8 mm (finger recess) |
| Material | Stainless steel 201 (options: 304 / 316) |
| Finish | Mirror polish (options: satin, PVD black, antique brass) |
| Mounting holes | 2 × Ø5 mm countersunk |
| Load test | ≥ 40 kg pull force on M4 screws |
| Corrosion resistance | ≥ 72 h NSS (ISO 9227) |
| Compliance | ISO 9001:2015 • RoHS |
Key Advantages
-
Flush profile – safe clearance in tight corridors, no snagging on clothes.
-
Mirror SS finish – scratch-resistant, easy to wipe clean in kitchens & bathrooms.
-
Universal 96 mm centres – retrofits most ready-made cabinet drill patterns.
-
One-piece pressing – no welds; edges are CNC-deburred for comfortable grip.
-
OEM flexibility – alternative lengths (64–160 mm), brushed grain, laser logo in ≤ 14 days.
Typical Applications
Sliding wardrobe doors • pocket doors • RV or marine lockers • pull-out drawers • flush deck hatches.
MOQ & Lead-Time
MOQ 1 000 pcs • Standard lead-time 12–18 working days after 30 % deposit • 7-day express for repeat orders.
Packaging & Shipping
1 pc/poly-bag with stainless M4 × 20 mm screws → 100 pcs/inner box → 600 pcs/5-ply carton (42 × 28 × 18 cm, 24 kg). Cartons palletised & stretch-wrapped; FSC cartons or retail blister packs available.
Installation Guide
-
Route recess 120 × 32 × 8 mm.
-
Align 96 mm screw centres, drill Ø3 mm pilot holes.
-
Seat pull flush, tighten M4 screws to 2 N·m; verify smooth slide clearance.
