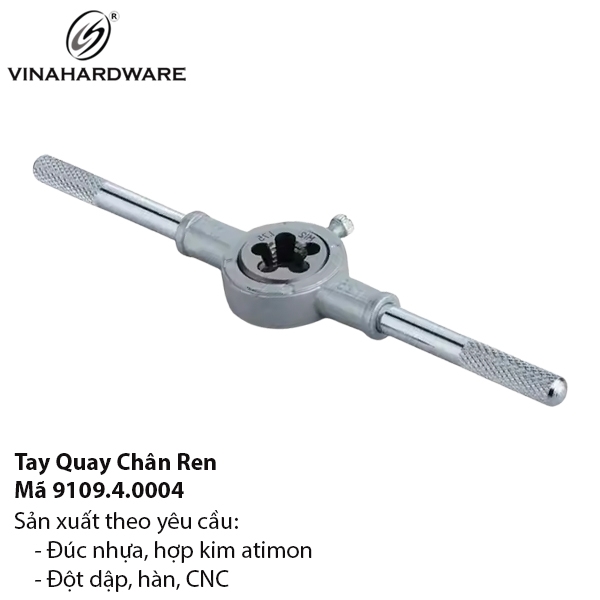

Adjustable Round-Die Stock Handle – Code 9109.4.0004
Key Facts | Details |
---|---|
Die Capacity (Metric) | Ø 16 mm (M3 – M12) • Ø 25 mm (M10 – M20) • Ø 30 mm (M18 – M24) |
Standards | ISO 225 • DIN 225 |
Body | CNC-machined aluminium alloy 6061-T6, bead-blasted & clear-anodised |
Handles | 304 stainless-steel, deep diamond knurling Ø 10 mm |
Clamping System | Three M4 set-screws with cup points + guide keyway for positive die seating |
Overall Lengths | 200 mm • 300 mm • 450 mm (size-dependent) |
Torque Rating | 28 N·m (Ø 16 mm) • 65 N·m (Ø 30 mm) |
MOQ | 300 pcs / size |
Lead Time | 12 – 18 days after 30 % deposit |
Packaging | PE pouch → 10 pcs/inner box → 1 500 pcs/master carton |
Vinahardware’s round-die stock handle lets you cut external threads anywhere, anytime. A lightweight yet rigid 6061-T6 aluminium body houses three cup-point set-screws that lock round dies square to the work, while stainless knurled handles give oily hands a rock-solid grip. Slide either handle in or out to gain leverage in tight corners, then tighten the centre collar—threads stay clean, concentric and on-size.
5-axis CNC milling – face-runout ≤ 20 µm for perfect die seating.
Clear anodising – 15 µm hard film resists cutting oils & corrosion.
Stainless handles TIG-welded to steel sliders, pull-test > 1 kN.
100 % torque test at 1.3 × rated load before packing.
Aluminium body weighs 40 % less than cast-iron holders – reduced fatigue.
Three-screw clamping prevents die chatter on tough stainless shafts.
Knurled handles remove for storage or extension bars.
OEM laser logo or colour anodise within 7 days.
Maintenance kits • On-site thread repair • Custom motorcycle shafts • Stainless hand-rail fabrication • Hobby model-making.
